ITT CANNON 1320150131 Industrial Cable Connector
ITT Cannon's CTC Series connectors are high-performance, cost-efficient solutions designed for heavy equipment, agricultural machinery, trucks, buses, and outdoor industrial electronics. Featuring Trident T2P and T3P contact technology, these connectors deliver up to IP69K sealing without wedge locks or blind seals. The rugged thermoplastic plug includes an integral coupling latch for tactile and audible feedback, making mating reliable. Suitable for inline cable-to-cable applications, they accept wires from 24-16 AWG, operate from -55°C to +105°C, and support up to 200 or 500 mating cycles depending on model. The silicone rubber gasket resists extreme conditions, ensuring durability and moisture resistance, making these connectors ideal for demanding outdoor environments and industrial systems.
ITT CANNON 1320150131 Industrial Cable Connector Specifications:
- Color: Black
- Number of contacts: 12
- Current rating: Up to 13A, up to 16A with high conductivity contacts
- Operating voltage: Up to 250V ac rms
- Wire range: 24-16 AWG (0.20-1.50 mm²)
- Operating temperature: -55°C to +105°C (-67°F to +221°F)
- Durability: 200 cycles (T2P), up to 500 cycles (T3P)
- Connection force: Single contact insertion < 50N, retention force >67N
- Mating & withdrawal force: <130N
- Sealing: Up to IP69K with end caps
- Flammability: UL 94 V-0
- Dielectric voltage: 1550V ac for 60 seconds
- Thermal shock: -55°C to +125°C (-67°F to +257°F), 5 cycles
- Physical shock: 50g s peak, 3 axes, 11ms
- Fluid resistance: No damage under industrial fluids, submersion up to 1 meter for 30 min
- Vibration: 10g’s peak, 10-500 Hz for 9 hours
- Salt spray: 48 hours
- Moisture resistance: 10 cycles, insulation resistance >100MΩ
- Housing material: Thermoplastic
- Seal gasket material: Silicone rubber
- Interface gasket material: Silicone rubber

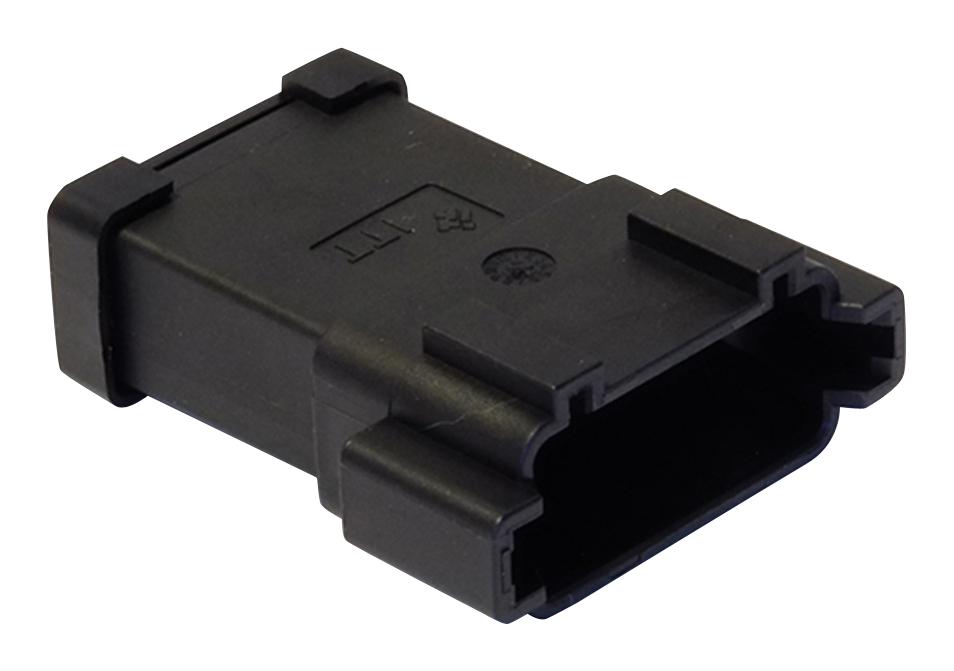

Buy the Buy ITT Cannon CTC Series Connector Part Number 1320150131 Online
Purchase the ITT Cannon CTC Series connector online today for durable and high-performance connection solutions. This rugged, high-sealing connector with IP69K rating is designed for demanding outdoor and industrial environments. It features a robust thermoplastic housing, integrated coupling latch, and silicone rubber gasket, ensuring resistance to extreme temperatures, moisture, and industrial fluids. Accepting wire ranges from 24-16 AWG, it supports up to 200 or 500 mating cycles, making it ideal for heavy equipment, agriculture, and outdoor electronics requiring reliable, long-lasting connections in challenging conditions. Buy now to ensure optimal connectivity and performance.
Get ITT Cannon CTC series connector with high sealing performance and rugged design today—built for outdoor industrial environments and reliable signal transmission.
Frequently Asked Questions
Where can I buy ITT CANNON 1320150131?
You can click on the BUY or RFQ button to purchase 1320150131 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part 1320150131?
You can download the 1320150131 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of 1320150131?
ITT CANNON
