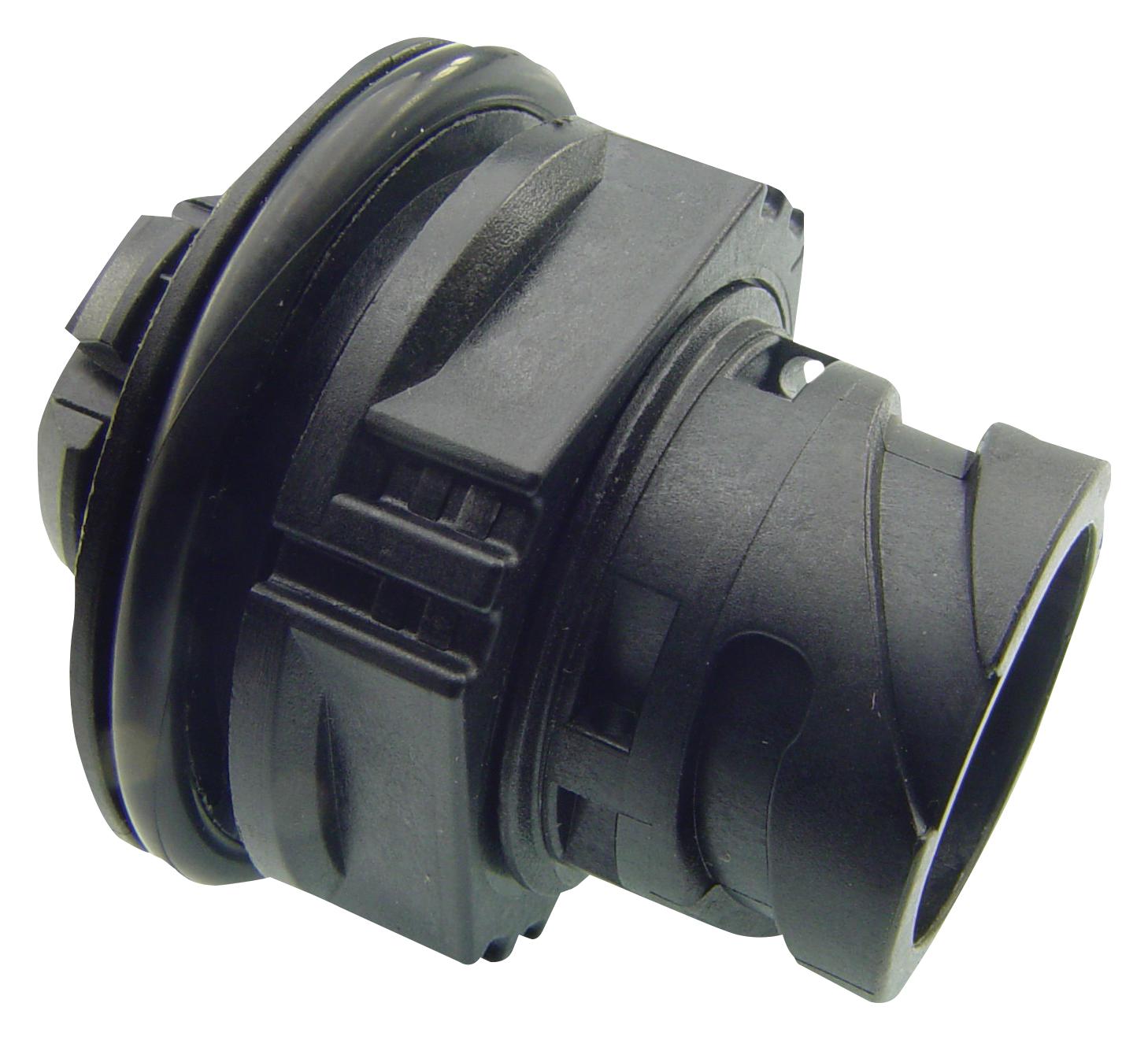

ITT CANNON APD1CP6 6-way waterproof connector
The APD 6-way connector series offers durable, waterproof, and vibration-resistant pin and receptacle connectors designed for demanding transportation applications. These connectors feature IP67 sealing, operate within -40°C to 125°C, and support 48 VDC operation, with a maximum contact resistance of 5 mΩ. Made from PBT GF housing and HNBR sealing material, they are resistant to humidity, salt spray, and fluid exposure including fuel and brake fluid. Designed for up to 50 mating cycles, they are ideal for rugged environments requiring reliable electrical connections.
ITT CANNON APD1CP6 6-way waterproof connector Specifications:
- Connector Type: Jam Nut Receptacle
- Gender: Pin
- Coding: Black (RAL 9005)
- Operating Voltage: 48 VDC
- Contact Resistance: 5 mΩ max
- Voltage Proof: 1000 VAG, 60 seconds
- Insulator Resistance: 10 MΩ min
- Durability: 50 Mating Cycles
- Coupling Torque: 4.2 Nm max
- Static Load: 350 N
- Temperature Range: -40°C up to 125°C
- Sealing: IP67
- Humidit Range: up to 95% r.h.
- Salt Spray Resistance: 96 hours at 35°C
- Fluid Compatibility: Brake fluid, ATF, fuel
- Vibration Resistance: Sine, 200 m/s², 3x 100h
- Housing Material: PBT GF
- Sealing Material: HNBR (or FKM)
- Coupling Nut Material: PA 66 GF
Buy the Cannon Series APD 6-way Waterproof Connector: APD1CP6
Secure your transportation and industrial applications with the Cannon Series APD 6-way waterproof connector. Designed for rugged environments, it features IP67 sealing, supporting -40°C to 125°C temperature range, and operates at 48 VDC. Crafted from durable PBT GF housing with HNBR sealing material, this connector resists salt spray, humidity, and fluid exposure like fuel and brake fluids. It withstands vibration and provides up to 50 mating cycles, ensuring long-lasting performance in tough conditions. Order online now to get dependable, waterproof electrical connections.
Order your Cannon Series APD 6-way waterproof connector today and ensure reliable, vibration-resistant electrical connections for demanding transportation projects.
