ITT CANNON APD1CP7EP Transportation Connector
The APD 7-way connector is designed for transportation applications, featuring a jam nut receptacle and press-in contacts. It offers robust sealing with IP 67 rating, operating within -40°C to 125°C, and withstands vibration, humidity, and salt spray. Made from PBT GF housing and HNBR or FKM seals, it supports 48 VDC operation with a maximum contact resistance of 5 milliohms and withstands 50 mating cycles. Suitable for various fluids like brake fluid, ATF, and fuel, it ensures durability and reliability in demanding conditions.
ITT CANNON APD1CP7EP Transportation Connector Specifications:
- Connector Type: Jam Nut Receptacle
- Gender: Pin
- Coding: Black (RAL 9005)
- Contact Type: Press-in contacts
- Operating Voltage: 48 VDC
- Contact Resistance: 5 mO max.
- Voltage Proof: 1000 VAG, 60 seconds
- Insulator Resistance: 10 MO min.
- Durability: 50 mating cycles
- Coupling Torque: 4.2 Nm max
- Static Load: 350 N
- Temperature Range: -40°C to 125°C
- Sealing: IP 67
- Salt Spray Resistance: 96 hours at 35°C
- Vibration Resistance: 200 m/s², 3x 100h
- Housing Material: PBT GF
- Sealing Material: HNBR (or FKM)
- Coupling Nut Material: PA 66 GF
- Fluid Compatibility: Brake fluid, ATF, fuel
- Humidity Range: Up to 95% RH

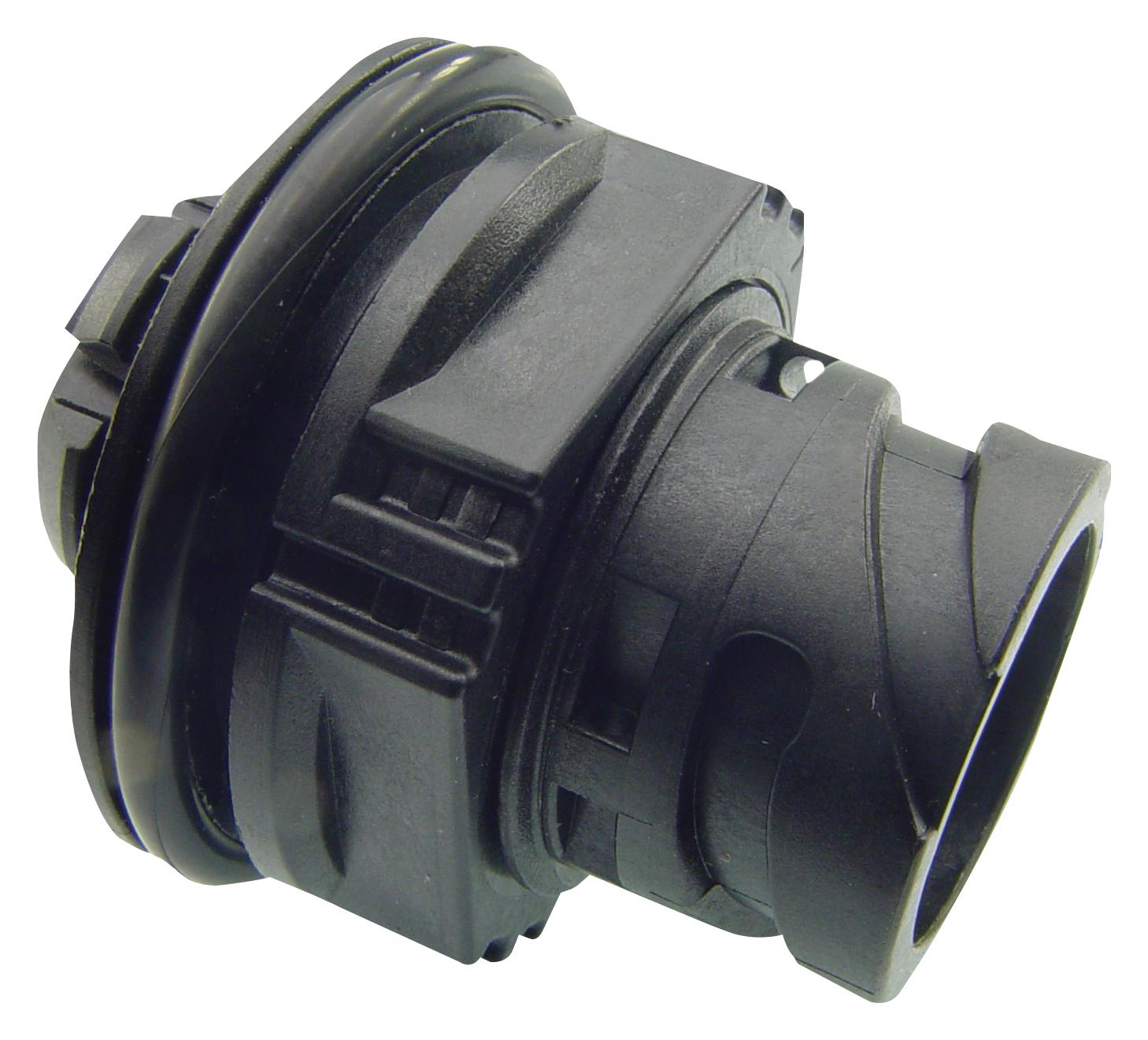

Buy the Cannon Series APD 7-way Connector: APD1CP7EP
Secure your transportation projects with the Cannon Series APD 7-way connector APD1CP7EP. Built with IP67 sealing, it withstands harsh conditions, vibration, salt spray, and extreme temperatures from -40°C to 125°C. Designed for 48 VDC operation, it features press-in contacts, a rugged PBT GF housing, and HNBR or FKM seals for durability. Ensure reliable fluid compatibility with brake fluid, ATF, and fuel. Purchase online today for dependable performance and easy integration into your industrial systems.
Order your Cannon Series APD 7-way connector APD1CP7EP today and ensure your transportation systems operate reliably in demanding environments.
Frequently Asked Questions
Where can I buy ITT CANNON APD1CP7EP?
You can click on the BUY or RFQ button to purchase APD1CP7EP from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part APD1CP7EP?
You can download the APD1CP7EP datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of APD1CP7EP?
ITT CANNON
