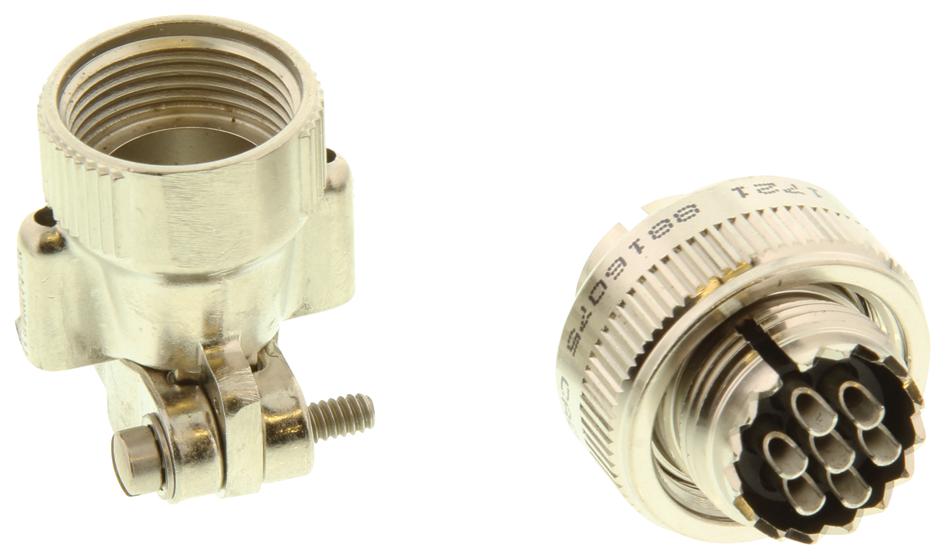

ITT CANNON CA06COME14SA7S Circular connector
The CA06COME14SA7S is a 7-position circular connector designed for industrial, defense, military, and aerospace applications. It features a nickel-plated aluminum alloy shell and copper alloy contacts with hard silver plating, ensuring durability and excellent electrical performance. The connector includes a panel mount straight receptacle with solder termination, a CR-elastomer insulator, and a grommet. Rated for 22A current, it offers a contact resistance below 6 milliohms and an insulator resistance over 1000 megaohms. Capable of withstanding test voltages up to 1050V, it delivers high reliability with a contact retention force of 35N and a durability of at least 500 mating cycles.
ITT CANNON CA06COME14SA7S Circular connector Specifications:
- Shell Material: Aluminum alloy
- Shell Plating: Nickel
- Contact Material: Copper alloy
- Contact Plating: Hard silver
- Number of Contacts: 7
- Contact Resistance: Less than 6 milliohms
- Insulator Resistance: Over 1000 megaohms
- Test Voltage: 1050 Vrms
- Rating: 22A at +20°C
- Operating Temperature: -55°C to +125°C
- Mating Cycles: Minimum 500
- Router Force per Contact: 1.0N
- Coupling Torque: Closing 3.0 Nm max, Opening 0.35 Nm min
- Ingress Protection: IP67 (with grommet)
- Cable Stripping Length: 6.2 mm
- Shell Size: 14SA7
- Grommet Material: CR-Elastomer
- Shell Material: Aluminum alloy, nickel plated
- Contact Type: Solder cup
- Contact Retention Force: 35N
- Test Voltage: 1050 Vrms
- Ambient Temperature Range: -55°C to +125°C
Buy the Cannon Series CA COM Circular Connector: CA06COME14SA7S
Order the Cannon CA06COME14SA7S circular connector online today for reliable performance in demanding environments. Featuring durable aluminum shell, silver-plated contacts, and IP67 protection, this connector ensures secure and long-lasting connections. Its excellent electrical ratings include 22A current capacity and high insulator resistance, making it suitable for industrial, military, and aerospace applications. With a robust design supporting over 500 mating cycles, ease of installation, and consistent quality, this connector guarantees dependable operation in extreme conditions. Shop online now for quick delivery and expert support.
Buy Cannon CA06COME14SA7S now and experience unmatched reliability and high-performance electrical connections for industrial, defense, and aerospace applications.
