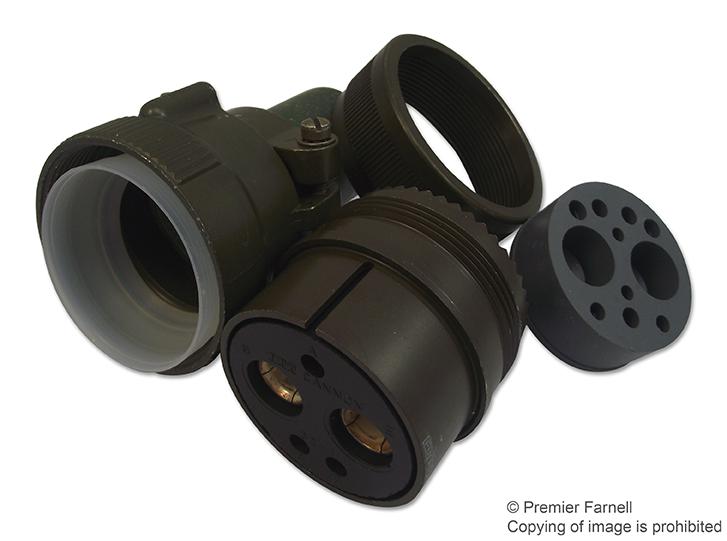

ITT CANNON CA3106E321S Industrial Circular Connector
This circular connector features a shell size of 32 with a straight shell style plug and endbell with clamp and bushing. Suitable for industrial applications, it accommodates 2 solder cup contacts of size 0 and 3 contacts of size 12, with hard silver plating for enhanced durability. It provides IP65 protection rating, salt spray resistance for 500 hours, and a robust copper alloy contact material. Designed for reliable performance with a maximum coupling torque of 19 Nm, it is ideal for demanding environments requiring secure and corrosion-resistant connections, supporting up to 500 mating cycles.
ITT CANNON CA3106E321S Industrial Circular Connector Specifications:
- Shell Size: 32
- Contact Arrangement: 32-4, with 2 size 0 and 3 size 12 contacts
- Contact Type: Solder Cup, with hard silver plating
- Shell Material: Aluminium alloy with olive drab chromate over cadmium plating
- Insulator Material: Neoprene
- Contact Material: Copper alloy
- Operating Voltage: Greater than 50V, use according to DIN VDE 410, IEC 60364-4-41
- Insulator Resistance: > 1000 MO at standard conditions
- Test Voltage: 2500 Vrms
- Air and Creepage Paths: Minimum 2.8 mm
- Ambient Temperature Range: -55°C to +125°C
- Protection Rating: IP65 according to DIN 40 050
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500 minimum
- Separation Force per Contact: Size 25/12 1.5N, Size 500/0 8.5N
- Coupling Torque: Closing 19 Nm max, Opening 1.03 Nm min
- Contact Retention: Size 25/12 55N, Size 500/0 95N
- Wire Stripping: Size 25/12 6.2 mm, Size 500/0 13.7 mm
- Sealing: Endbell with clamp and bushing, IP65 rated
- Gasket and Gromet Material: Neoprene
Buy the Cannon CA3106E32 – Reliable Circular Connector for Industrial Applications
Purchase the Cannon CA3106E32 circular connector online today for durable, IP65-rated performance in industrial environments. Featuring a shell size 32 with robust copper contacts, salt spray resistance, and a sealing endbell, this connector offers reliable operation across -55°C to +125°C. Its high mating cycle count ensures longevity, while the IP65 protection guarantees outdoor and harsh environment suitability. Whether for military, aerospace, or industrial automation, this connector ensures secure, corrosion-resistant, and dependable connections in demanding applications. Get yours now and keep your projects operating flawlessly.
Order your Cannon Series CA3106E32 high-performance circular connector today and ensure secure, corrosion-resistant connections in your industrial projects.
Frequently Asked Questions
Where can I buy ITT CANNON CA3106E321S?
You can click on the BUY or RFQ button to purchase CA3106E321S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part CA3106E321S?
You can download the CA3106E321S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of CA3106E321S?
ITT CANNON
