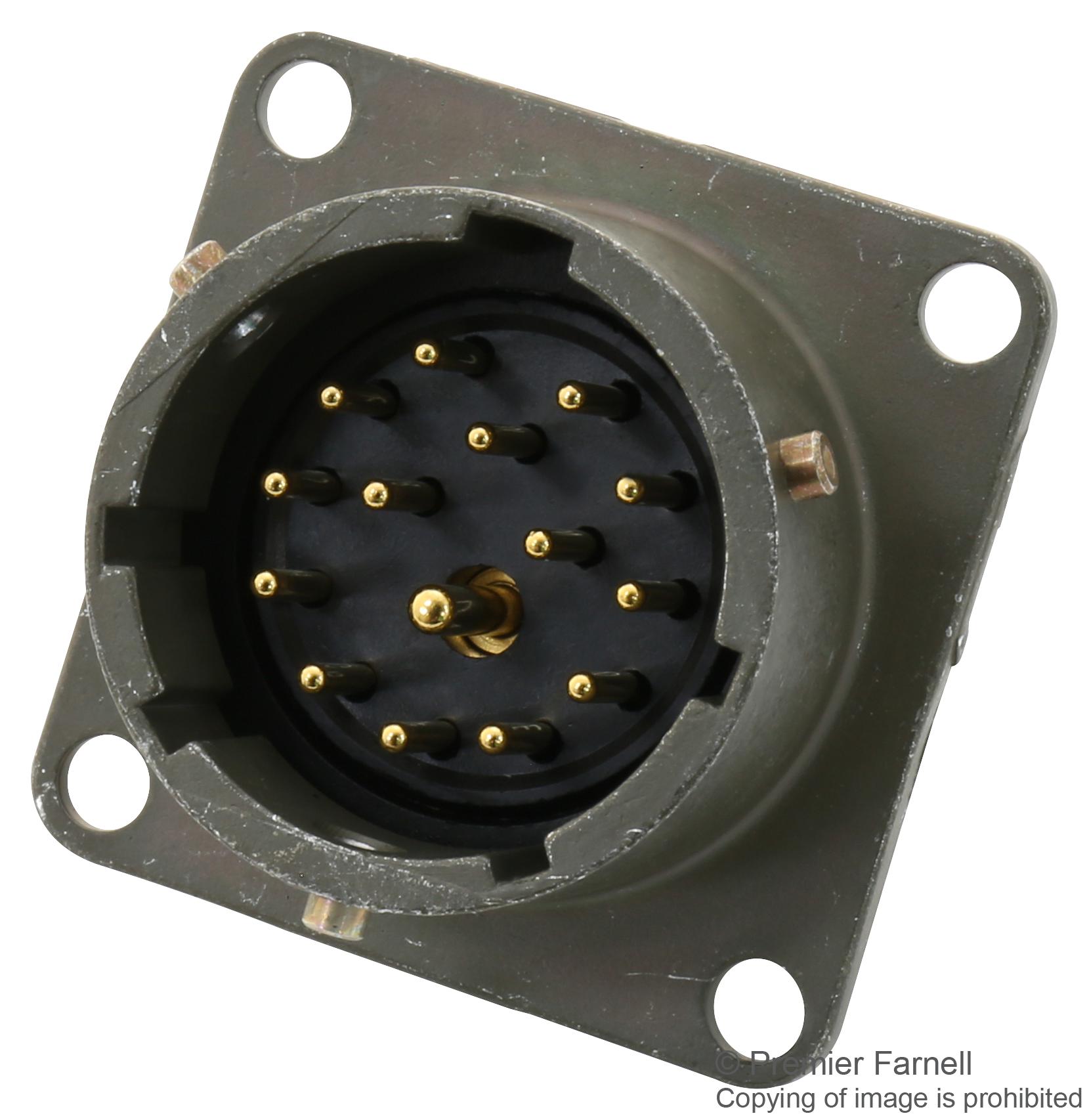

ITT CANNON KPSE02E1415P Circular Receptacle
The KPSE02E14-15P from ITT Cannon belongs to the KPSE series of miniature circular box mount receptacles, compliant with MIL-DTL-26482 Series I specifications. It features a 15-contact configuration with a positive three-point bayonet quick disconnect coupling, five keyways for polarization, and a high contact density arrangement. These connectors are designed to withstand harsh environments, offering excellent electrical performance suitable for extreme shock, vibration, and exposure conditions. Engineered for rapid assembly with clip-in contacts and insulators, they are fully intermateable, intermountable, and interchangeable with all MIL-DTL-26482 connectors, allowing for easy design modifications at low cost. The connector provides an IP68 rated environmental seal, operates within a temperature range of -55°C to +125°C, supports up to 500 mating cycles, and endures vibration levels of 200 m/s² at 10Hz to 2000Hz. Its insulation resistance is 5000 Mohm at 25°C, with resilient neoprene insulators and grommets, salt spray resistance for 500 hours, and features an aluminium alloy body with olive drab chromate over cadmium plating. Contacts are copper alloy crimp pins with gold plating, suitable for industrial and commercial applications.
ITT CANNON KPSE02E1415P Circular Receptacle Specifications:
- Shell Material: Aluminium alloy
- Shell Plating: Olive drab chromate over cadmium plating
- Contact Material: Copper alloy
- Contact Plating: Gold plated
- Contact Arrangement: 14-15
- Number of contacts: 14 contacts size 20, 1 contact size 16
- Operating temperature: -55°C to +125°C
- Water tightness: IP68 according to DIN 40 050
- Vibration: 200 m/s² at 10Hz to 2000Hz
- Mating Cycles: 500 min
- Insulation Resistance: 5000 MOhm
- Test Voltage: 1500 Vms
- Contact Rating: AWG20 7.5A, AWG16 13.0A
- Salt spray resistance: 500 hours
- Environmental sealing: IP68 rated
Buy the Cannon KPSE02E14-15P – Reliable Circular Receptacle for Industrial Applications
Order the Cannon KPSE02E14-15P today and benefit from a high-performance, IP68 sealed circular receptacle designed for demanding industrial applications. Featuring a robust aluminium alloy body, gold-plated copper contacts, and superior vibration and temperature resistance, this connector is ideal for harsh environments requiring reliable electrical connections. Its quick disconnect bayonet coupling ensures fast installation, while the high contact density supports complex wiring needs. Enjoy seamless intermateability with MIL-DTL-26482 standards, affordability, and comprehensive environmental sealing—perfect for equipment exposed to extreme shocks, vibration, and weather conditions.
Get Cannon KPSE02E14-15P today—built for extreme environmental resilience, rapid assembly, and long-lasting durability.
