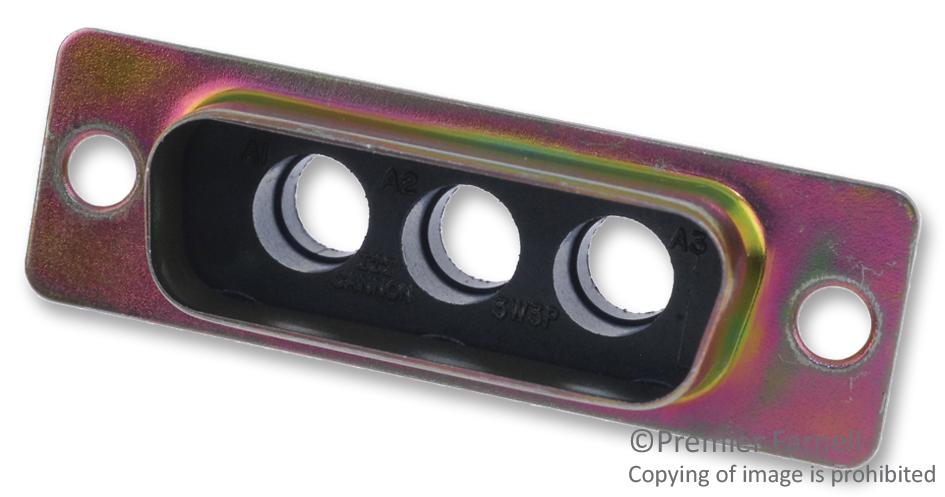

ITT CANNON DAM3W3P 3-Way D-Sub Connector
The DAM3W3P is a 3-way D-sub connector plug designed for reliable signal transmission in industrial and computer applications. It features gold-plated copper alloy contacts compatible with wire gauges from 26 to 8 AWG, ensuring excellent electrical performance. The connector is housed in a black thermoplastic insulator made of UL 94V-0 material, providing high heat resistance. Its steel shell is finished with yellow chromate over zinc, offering robust corrosion resistance. With a maximum current rating of 7.5A for signal contacts, it supports up to 50 mating cycles, making it suitable for demanding environments.
ITT CANNON DAM3W3P 3-Way D-Sub Connector Specifications:
- Wire Gauge Range: AWG 8-26
- Contact Arrangement: 3W3 (3 empty size 8 cavities)
- Dielectric Withstanding Voltage: 500 VAC at sea level
- Current Rating: Signal contacts 7.5A max
- Operating Temperature: -55°C to +125°C
- Shell Material: Steel
- Shell Finish: Yellow chromate over zinc
- Insulator Material: Thermoplastic, UL 94V-0
- Insulator Color: Black
- Mounting Method: 0.120 inch (3.05 mm) through hole
- Flammability: UL 94V-0
- Durability: Supports up to 50 mating cycles
- Gender: Pin
- Delivery: Without size 8 contacts, order separately
Buy the Buy Cannon DAM3W3P Part Number DAM3W3P Online
Experience reliable signal connectivity with the 3-Way D-Sub Connector featuring gold-plated contacts, robust steel shell, and thermoplastic insulator. Perfect for industrial environments, it supports wire gauges from 26 to 8 AWG, handles up to 7.5A, and withstands up to 50 mating cycles. Its corrosion-resistant finish ensures durability while UL 94V-0 flammability rating provides safety. Compatible with a variety of applications including computer peripherals and industrial control systems, making it an excellent choice for demanding technical needs.
Get Cannon DAM3W3P today—built for signal integrity and enduring performance.
Frequently Asked Questions
Where can I buy ITT CANNON DAM3W3P?
You can click on the BUY or RFQ button to purchase DAM3W3P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DAM3W3P?
You can download the DAM3W3P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DAM3W3P?
ITT CANNON
