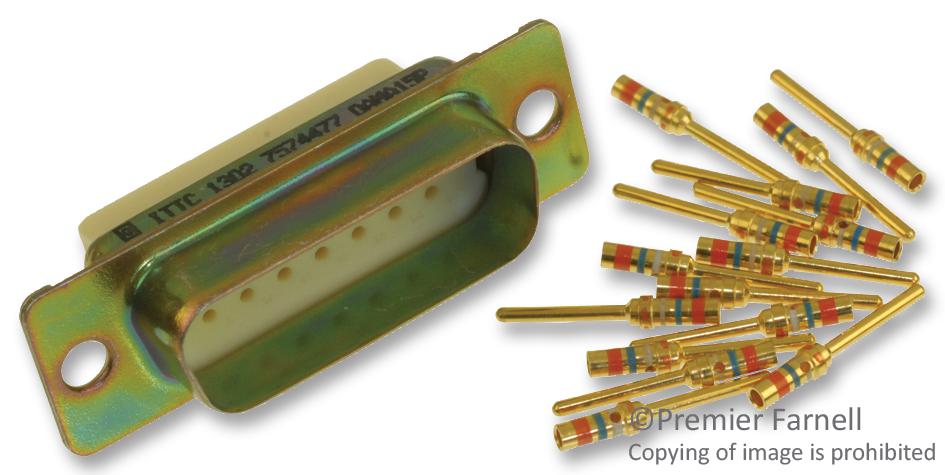

ITT CANNON DAMA15P D-Sub Connector
The DAMA15P is a high-reliability 15-position D-sub connector designed for crimp contact termination, supporting wire sizes AWG 20-28. It features gold-over-nickel plated copper alloy contacts for excellent conductivity and corrosion resistance. The connector has a steel shell with tin plating, enhancing durability and EMI shielding, and a black UL94V-0 thermoplastic insulator for flammability safety. Suitable for computer and peripheral applications, it operates within -55°C to +125°C, handling a maximum of 7.5A current, with dielectric withstand voltage of 1000VAC at sea level, and low contact resistance of 10 milliohms.
ITT CANNON DAMA15P D-Sub Connector Specifications:
- Number of contacts: 15
- Contact Material: Copper alloy with gold-over-nickel plating
- Shell Material: Steel with tin plating
- Shell Finish: Tin over nickel
- Insulator Material: UL94V-0 thermoplastic
- Wire Range: AWG 20-28 (standard), AWG 22-28 (high density)
- Maximum Current: 7.5A
- Contact Resistance: 10 milliohms max.
- Dielectric Withstanding Voltage: 1000VAC at sea level
- Operating Temperature Range: -55°C to +125°C
- Through Hole Size: 3.05mm (0.120 inches)
- Connector Series: D*MA high-reliability series
- Certification: UL94V-0 flammability rating
Buy the Buy Cannon D-Sub Connector Part Number DAMA15P Online
Purchase the Cannon DAMA15P D-Sub connector online for reliable high-performance connections in computer and peripheral systems. Featuring a robust steel shell with tin plating and gold-over-nickel contacts, it offers excellent conductivity, corrosion resistance, and durability. Suitable for applications requiring stable electrical performance from -55°C to +125°C, supporting up to 7.5A current. Its UL94V-0 thermoplastic insulator ensures safety and compliance. Easy to install with crimp termination, making it ideal for demanding electronic environments needing dependable connectivity.
Get Cannon DAMA15P today—designed for high reliability, excellent performance in computer and peripheral connections, and durable construction for long-lasting use.
Frequently Asked Questions
Where can I buy ITT CANNON DAMA15P?
You can click on the BUY or RFQ button to purchase DAMA15P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DAMA15P?
You can download the DAMA15P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DAMA15P?
ITT CANNON
