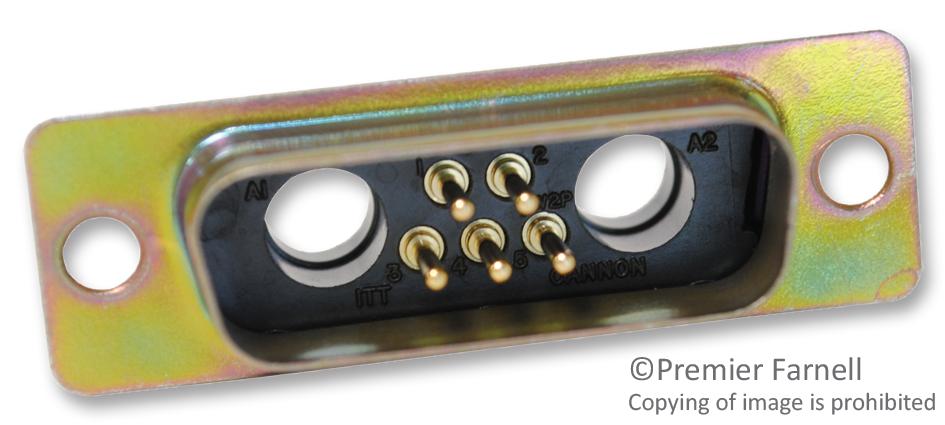

ITT CANNON DAMM7W2P D-Subminiature Connector
The DAMM7W2P is a durable two-position D-Sub connector featuring gold over nickel plated copper alloy contacts and a robust steel shell with yellow chromate over zinc finish. This solder-type plug has a through-hole mounting design suitable for wiring with AWG 8-26. It supports a maximum current of 7.5A per signal contact and has a low contact resistance of 10 milliohms, ensuring reliable conductivity. Rated for an operating temperature range from -55°C to +150°C, it is ideal for use in industrial, computer, and peripheral applications requiring high durability and secure connections.
ITT CANNON DAMM7W2P D-Subminiature Connector Specifications:
- Wire Gauge Range: AWG 8-26
- Mating Cycles: 500
- Contact Arrangement: 7W2 (5 contacts size 20, 2 empty cavities)
- Dielectric Withstanding Voltage: 500 VAC at sea level
- Current Rating Signal Contacts: 7.5A max
- Contact Resistance: 10 milliohms max
- Operating Temperature: -55°C to +150°C
- Shell Material: Steel with yellow chromate over zinc finish
- Insulator Material: Thermoplastic, UL 94V-0
- Insulator Color: Black
- Gender: Pin
- Contact Type: Solder pot
- Contact Material: Copper alloy
- Contact Finish: Gold over nickel
- Mounting Method: 120-inch (3.05mm) through hole
Buy the Cannon DAMM7W2P – Reliable D-Sub Connector for Industrial Applications
Secure your connection needs with the Cannon DAMM7W2P D-Sub connector, featuring high-quality gold over nickel contacts, a steel shell with corrosion-resistant yellow chromate finish, and UL94V-0 rated thermoplastic insulator. Designed for wiring from AWG 8-26, it supports up to 7.5A, making it ideal for industrial, computer, and peripheral applications. Its sturdy construction ensures reliable performance in harsh environments, with a long lifespan of 500 mating cycles, making it an essential component for any professional electronics or automation project.
Buy Cannon DAMM7W2P now and experience unmatched durability and reliable electrical connections for industrial and computer applications.
Frequently Asked Questions
Where can I buy ITT CANNON DAMM7W2P?
You can click on the BUY or RFQ button to purchase DAMM7W2P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DAMM7W2P?
You can download the DAMM7W2P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DAMM7W2P?
ITT CANNON
