ITT CANNON DAMM7W2S D-Subminiature Combo Connector
The DAMM7W2S is a two-position combo D-sub connector with a steel shell finished in yellow chromate over zinc. It features a black thermoplastic insulator and solder pot contacts made of copper alloy, plated with gold over nickel for enhanced conductivity and corrosion resistance. Designed with a through-hole mounting method, it accommodates wire gauges from 26 to 8 AWG and supports up to 500 mating cycles. Suitable for high-temperature environments, it handles currents up to 7.5A with a contact resistance of 10 milliohms, making it ideal for computer and peripheral applications.
ITT CANNON DAMM7W2S D-Subminiature Combo Connector Specifications:
- Wire Gauge Range: AWG 8-26
- Mating Cycles: 500
- Contact Arrangement: 7W2 (5 contacts size 20, 2 empty size 8 cavities)
- Dielectric Withstanding Voltage: 500 VAC at sea level
- Current Rating Signal Contacts: 7.5A max
- Contact Resistance: 10 milliohms max
- Operating Temperature: -55°C to +150°C
- Shell Material: Steel with yellow chromate over zinc finish
- Insulator Material: Thermoplastic, UL 94V-0
- Insulator Color: Black
- Contact Type: Solder pot
- Contact Material: Copper alloy
- Contact Finish: Gold over nickel
- Mounting Method: Through hole (120 inches or 3.05mm)

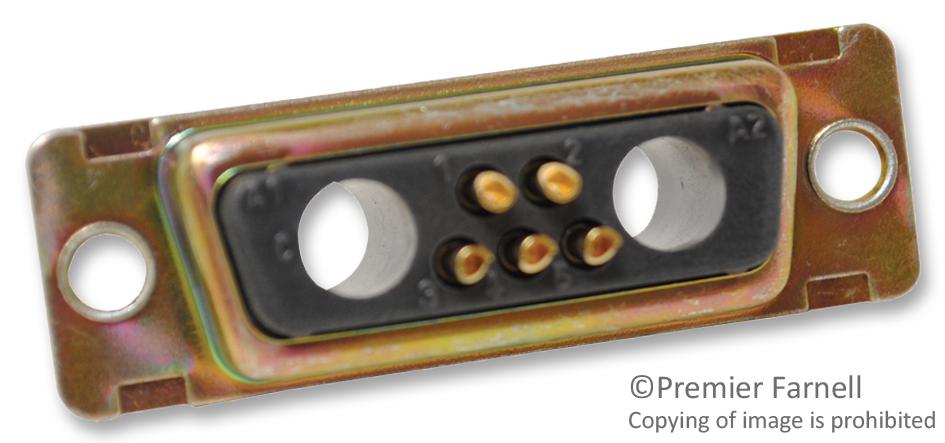

Buy the Buy Cannon D-Sub Part Number DAMM7W2S Online
Purchase the Cannon DAMM7W2S D-Subminiature combo connector online for versatile computer and peripheral connectivity. Featuring a robust steel shell with yellow chromate over zinc finish, it offers excellent corrosion resistance. The black thermoplastic insulator with UL 94V-0 rating ensures safety and durability, while solder pot contacts made of copper alloy with gold over nickel plating provide excellent conductivity and reliability. Its through-hole mounting and wire gauge compatibility from 26 to 8 AWG make it ideal for high-temperature applications requiring up to 7.5A current and 500 mating cycles.
Get Cannon DAMM7W2S today—built for high durability with solder contacts and reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy ITT CANNON DAMM7W2S?
You can click on the BUY or RFQ button to purchase DAMM7W2S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DAMM7W2S?
You can download the DAMM7W2S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DAMM7W2S?
ITT CANNON
