ITT CANNON DB25SA191A197 D-Sub Connector
The DB25SA191A197 is a 25-pin D-Sub socket connector designed for reliable electronic connections in industrial applications. It features a durable steel shell with a tin finish, thermoplastic insulator in black color, and gold-over-nickel plated copper alloy contacts for optimal conductivity and corrosion resistance. Rated for 7.5A at 85°C, it withstands up to 1200VAC dielectric voltage and supports 200 mating cycles. The connector's through-hole mounting method and solder pot termination ensure secure attachment and signal integrity in demanding environments.
ITT CANNON DB25SA191A197 D-Sub Connector Specifications:
- Number of contacts: 25
- Contact size: 20
- Gender: Socket
- Contact material: Copper alloy
- Contact finish: Gold over nickel
- Wire gauge range: AWG 20-28
- Mating cycles: 200
- Dielectric withstanding voltage: 1200 VAC at sea level
- Current rating: 7.5 A at 85°C / 5 A at 105°C
- Contact resistance: 10 milli Ohms max
- Operating temperature: -55°C to +125°C
- Shell material: Steel
- Shell finish: Tin
- Insulator material: Thermoplastic, UL 94V-0
- Insulator color: Black
- Mounting method: Through Hole, 3.05 mm
- Termination type: Solder Pot
- Salt spray test: 20 hours

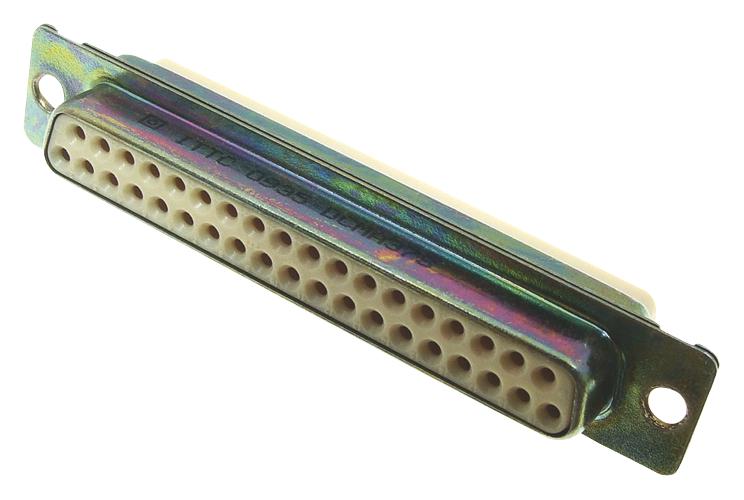

Buy the Buy Cannon D Sub Part Number DB25SA191A197 Online
Order the Cannon D-Sub Connector with part number DB25SA191A197 online today. Featuring a steel shell with tin finish, gold-plated copper contacts, and a solder pot termination, it ensures reliable connections in industrial applications. Rated for 7.5A, it withstands 1200VAC voltage and over 200 mating cycles. The connector's through-hole mounting and thermoplastic insulator provide stability and durability in demanding environments, making it an essential component for electronic and automation systems.
Get Cannon DB25SA191A197 today—designed for durable and secure electronic connections in industrial environments.
Frequently Asked Questions
Where can I buy ITT CANNON DB25SA191A197?
You can click on the BUY or RFQ button to purchase DB25SA191A197 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DB25SA191A197?
You can download the DB25SA191A197 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DB25SA191A197?
ITT CANNON
