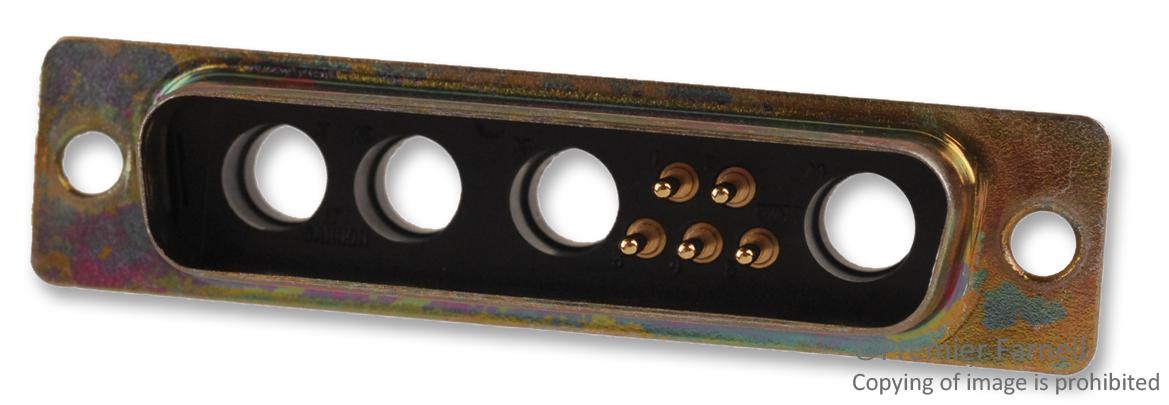

ITT CANNON DBM9W4SNM High Reliability Connector
The product is a high-reliability, space-grade connector system designed for demanding military, aerospace, and industrial applications. It offers excellent shielding to minimize EMI/RFI leakage, robust construction with gold or nickel finishes, and high current and voltage ratings up to 40 A and 2800 VAC. Available in various configurations including straight, 90°, PCB, and pressfit variants, with options for Coax, high power, and high voltage contacts. Suitable for space-constrained environments with M3 or 4-40 threaded hardware, and compliant with military and NASA standards for durability and performance.
ITT CANNON DBM9W4SNM High Reliability Connector Specifications:
- Shell Material: Brass, Stainless Steel (F225), or Copper Alloy
- Finish: Gold over Nickel, Tin over Copper, or Cadmium plated
- Temperature Rating: -65°C to +125°C
- Current Rating: Up to 40 A
- Voltage Rating: Up to 2800 VAC
- Impedance: 75 Ohm or 50 Ohm variants
- Dielectric Withstanding Voltage: 1250 VAC (coax), 1000 VAC (high voltage)
- Insulation Resistance: 10^3 MΩ at 100 V
- Contact Resistance: Less than 1 mΩ
- Dimensions: Shell sizes 15, 25, 37, 50, 75, 100 mm with respective lengths up to 69 mm
- Insertion Loss: Less than 0.2 dB at 1 GHz
- VSWR: Less than 1.40 + 0.03F
- Assembly options: solder cup, crimp, pressfit, and PCB mounting
- Compatible with military and aerospace standards
Buy the Cannon DBM9W4SNM – Reliable High-Performance Connector for Industrial Applications
Enhance your equipment with the high-quality Cannon DBM9W4SNM connector, designed for demanding aerospace, military, and industrial applications. This connector offers superior EMI shielding, robust construction with gold or nickel finishes, and high current and voltage ratings up to 40 A and 2800 VAC. Its versatile configurations include straight, 90°, PCB, and pressfit variants, with options for coax, high power, and high voltage contacts. Trust this connector for durability, optimal performance, and space efficiency in critical systems.
Buy Cannon DBM9W4SNM now and experience unmatched reliability and performance in high-stress environments.
Frequently Asked Questions
Where can I buy ITT CANNON DBM9W4SNM?
You can click on the BUY or RFQ button to purchase DBM9W4SNM from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DBM9W4SNM?
You can download the DBM9W4SNM datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DBM9W4SNM?
ITT CANNON
