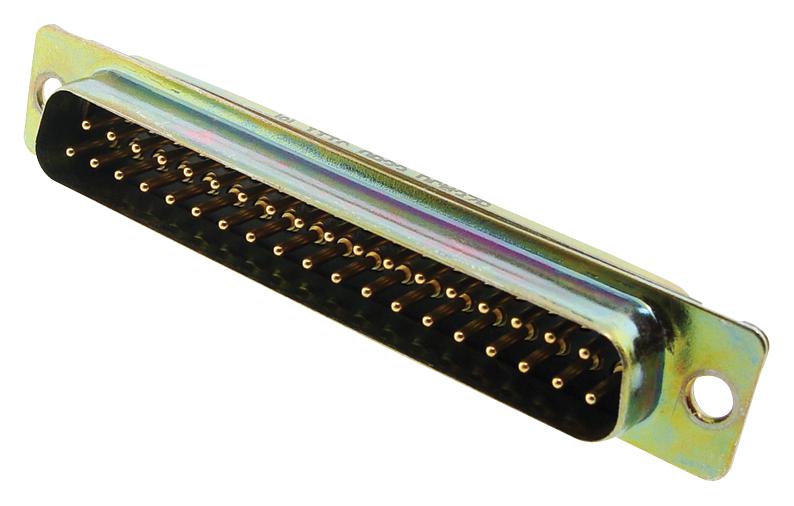

ITT CANNON DC37PA191K87 D Sub Connector
This high-quality D Sub connector features 37 gold-over-nickel copper alloy contacts, durable steel shell with tin finish, and a thermoplastic insulator in black. Designed for reliable electrical connections, it supports 20-28 AWG wire gauge, offers a current rating of 7.5 A at 85°C, and withstands voltage up to 1200 VAC. With 200 mating cycles and a solder pot termination, it is suitable for demanding industrial applications requiring robust mechanical and electrical performance within -55°C to +125°C operating temperature range.
ITT CANNON DC37PA191K87 D Sub Connector Specifications:
- Contact Arrangement: 37 contacts, size 20
- Contact Material: Copper alloy
- Contact Finish: Gold over nickel
- Number of Mating Cycles: 200
- Voltage Rating: 1200 VAC
- Current Rating: 7.5 A at 85°C / 5 A at 105°C
- Wire Gauge Range: 20-28 AWG
- Shell Material: Steel
- Shell Finish: Tin
- Insulator Material: Thermoplastic, UL 94V-0
- Insulator Color: Black
- Operating Temperature: -55°C to +125°C
- Mounting Method: Through hole, 3.05mm
- Contact Termination: Solder pot
- Salt Spray Resistance: 20 hours
- Dielectric Withstanding Voltage: 1200 VAC
Buy the Cannon DC37PA191K87 – Reliable D Sub for Industrial Applications
Purchase the Cannon D Sub connector online today and ensure your industrial projects have reliable, high-performance connections. Featuring 37 gold-over-nickel contacts, a steel shell with tin finish, and a solder pot termination, this connector offers durability and excellent electrical conductivity. Its wide wire gauge range from 20 to 28 AWG supports various wiring needs while withstanding operational temperatures from -55°C to +125°C. Ideal for demanding applications needing robust mechanical and electrical reliability, supported by 200 mating cycles for extended usage.
Get Cannon DC37PA191K87 today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy ITT CANNON DC37PA191K87?
You can click on the BUY or RFQ button to purchase DC37PA191K87 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DC37PA191K87?
You can download the DC37PA191K87 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DC37PA191K87?
ITT CANNON
