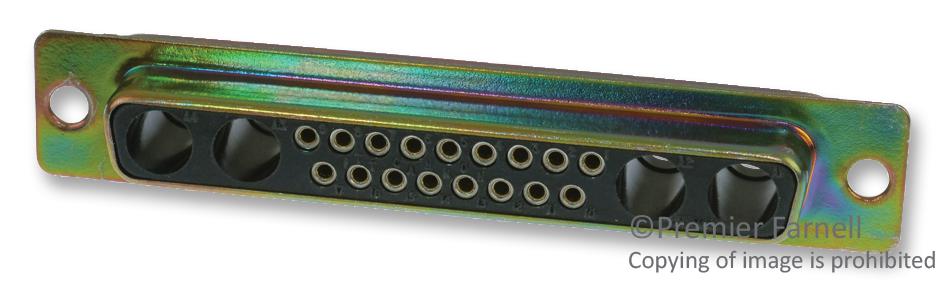

ITT CANNON DCM21WA4S 21-Position D-Sub Receptacle
The DCM21WA4S is a versatile 21-position D-sub connector featuring a combination layout with socket gender and solder pot contacts. It boasts gold flash-plated copper alloy contacts for enhanced conductivity and corrosion resistance, housed within a durable steel shell finished with yellow chromate over zinc for added corrosion protection. The black thermoplastic insulator, compliant with UL94V-0, provides excellent insulation and support for wire gauges from 26 to 8 AWG. Rated for up to 7.5A current and 500VAC dielectric withstand, it is ideal for computer peripherals and electronic equipment requiring reliable signal and power connections.
ITT CANNON DCM21WA4S 21-Position D-Sub Receptacle Specifications:
- Wire Gauge Range: AWG 8-26
- Mating Cycles: 50
- Contact Arrangement: 21 positions (17 size 20, 4 empty cavities)
- Dielectric Withstanding Voltage: 500 VAC at sea level
- Current Rating: Signal contacts 7.5A max
- Contact Resistance: 10 milli Ohm max
- Operating Temperature: -55°C to +125°C
- Shell Material: Steel with yellow chromate over zinc finish
- Insulator Material: Thermoplastic, UL 94V-0 rating
- Contact Finish: Gold flash
- Mounting Method: Through hole, 3.05mm
- Contact Type: Solder pot
- Contact Material: Copper alloy
Buy the Cannon Series COMBO D D-Sub Connector: DCM21WA4S
Order the Cannon DCM21WA4S connector online for dependable performance in electronic projects and computer peripherals. With a robust steel shell finished in yellow chromate over zinc, this connector offers corrosion resistance and durability. The gold flash-plated copper contacts ensure excellent conductivity, supporting wire sizes from 26 to 8 AWG. Rated for 7.5A at 500VAC, it features a UL 94V-0 thermoplastic insulator and a through-hole mount for easy installation. Ideal for reliable, high-quality electrical connections in demanding environments.
Get Cannon DCM21WA4S today—built for reliable signal transmission and secure mounting in electronic and computer equipment.
Frequently Asked Questions
Where can I buy ITT CANNON DCM21WA4S?
You can click on the BUY or RFQ button to purchase DCM21WA4S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DCM21WA4S?
You can download the DCM21WA4S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DCM21WA4S?
ITT CANNON
