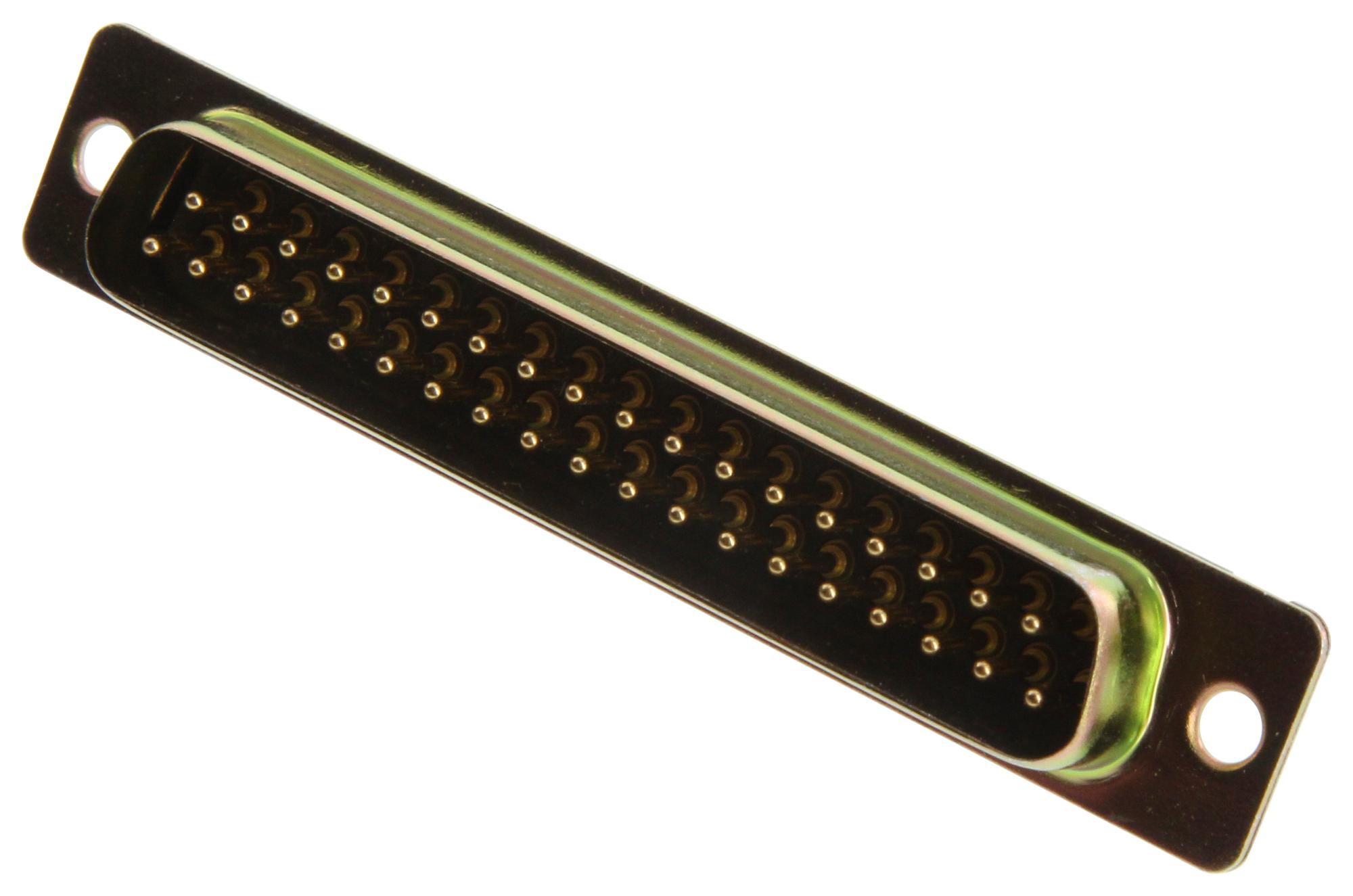

ITT CANNON DCMM37PE D-Sub Connector
The D*M high-reliability D-Sub connector features 37 contacts suitable for wire gauges 20-28 AWG, with a current rating of 7.5A and operating temperature from -55°C to +150°C. Constructed with steel shell finished in yellow chromate over zinc for corrosion resistance, it includes a thermoplastic insulator rated UL 94V-0 and gold-over-nickel plated copper alloy contacts. Designed for 500 mating cycles and dielectric withstand voltage of 1000VAC, this connector ensures durability and dependable performance in harsh environments with salt spray resistance up to 48 hours.
ITT CANNON DCMM37PE D-Sub Connector Specifications:
- Wire Gauge Range: AWG 20-28
- Mating Cycles: 500
- Contact Arrangement: 37 contacts, size 20
- Dielectric Withstanding Voltage: 1000 VAC at sea level
- Current Rating: 7.5 A maximum
- Contact Resistance: 7.5 milli Ohm maximum
- Operating Temperature: -55°C to +150°C
- Shell Material: Steel with yellow chromate over zinc finish
- Insulator Material: Thermoplastic, UL 94V-0 rated
- Insulator Color: Black
- Contact Type: Straight PCB pin
- Contact Material: Copper alloy
- Contact Finish: Gold over nickel
- Hardware: 120-inch (3.05mm) through-hole
- Salt Spray Resistance: 48 hours (96 hours for stainless steel)
Buy the Buy Cannon D-Sub Part Number DCMM37PE Online
Secure your electronic setups with the high-reliability D-Sub connector featuring 37 contacts, suitable for 20-28 AWG wires, rated for 7.5A. Its durable steel shell with corrosion-resistant yellow chromate finish, UL 94V-0 thermoplastic insulator, and gold-plated copper contacts provide excellent performance in harsh environments. Designed for 500 mating cycles and dielectric withstand voltage of 1000VAC, it withstands salt spray testing up to 48 hours, ensuring long-term durability for critical applications. Purchase online now for dependable, high-quality connections.
Buy Cannon DCMM37PE now and experience unmatched reliability and performance in high-demand electronic connections.
Frequently Asked Questions
Where can I buy ITT CANNON DCMM37PE?
You can click on the BUY or RFQ button to purchase DCMM37PE from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DCMM37PE?
You can download the DCMM37PE datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DCMM37PE?
ITT CANNON
