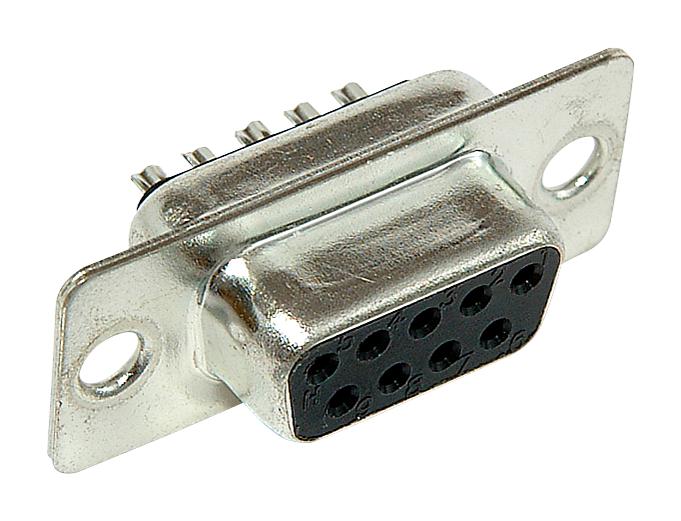

ITT CANNON M24308233Z Environmental Connector
The M24308233Z is a rugged environmental D*D series connector designed for aerospace and ground support applications. Featuring a durable aluminum shell with cadmium plating and yellow chromate coating, it offers superior vibration and moisture resistance. Available in solder and crimp contact types, it accommodates wire sizes up to #20 AWG, ensuring reliable connections. The connector meets MIL standards for environmental resistance, including salt spray, vibration, shock, and moisture. Its compact rectangular design with dust caps and removable potting cups makes it ideal for harsh environments where secure, vibration-proof, and moisture-resistant connections are critical.
ITT CANNON M24308233Z Environmental Connector Specifications:
- Shell Material: Aluminum, cadmium plated with yellow chromate coating
- Contacts: Copper alloy, gold plated .00002 (.0005) over nickel .00004 (.0010)
- Contact Termination: Solder pot for #20 AWG, crimp for #20, #22, #24 AWG
- Insulation Resistance: >5,000 megaohms
- Voltage Rating: AC (rms), 60 Hz, measured at 25°C
- Vibration Resistance: Exceeds MIL-STD-202A, Method 204
- Salt Spray Resistance: 50 hours exposure, exceeds MIL-STD-202A, Method 101A
- Moisture Resistance: Exceeds MIL-STD-202A, Method 106
- Shock Resistance: Exceeds MIL-STD-202A, Method 213
- Air Leakage: Max 1 cubic inch/hour at 30 PSI pressure differential
- Contact Retention Force: Minimum 8 pounds initially, 5 pounds after tenth cycle
- Altitude: Up to 70,000 feet
- Operating Temperature: Not specified but designed for harsh environments
Buy the Cannon Series D*D Environmental Connector: M24308233Z
Secure your aerospace and ground support projects with the Cannon Environmental Series connector. Designed for harsh conditions, it features a rugged aluminum shell, MIL-compliant environmental sealing, and choices of solder or crimp contact terminations. Its compact rectangular design, dust caps, removable potting cups, and high resistance to vibration, moisture, salt spray, and shock ensure durability and dependability in demanding environments. Easily install and maintain with reliable performance guaranteed—order online today and give your systems the robust connection they need for mission-critical applications.
Order your Cannon Series D*D Environmental connector today and ensure your aerospace projects have the reliable, moisture-resistant connections they demand.
Frequently Asked Questions
Where can I buy ITT CANNON M24308233Z?
You can click on the BUY or RFQ button to purchase M24308233Z from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part M24308233Z?
You can download the M24308233Z datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of M24308233Z?
ITT CANNON
