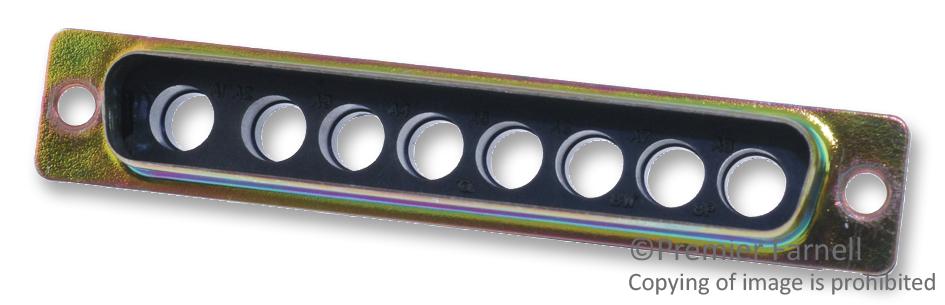

ITT CANNON DCMM8W8P D-Sub Connector
The DCMM8W8P is an 8-position combination D-sub connector equipped with a plug and a corresponding through-hole mounting socket. The plug features gold over nickel-plated copper alloy contacts, ensuring reliable electrical performance and corrosion resistance. The steel shell is finished with yellow chromate over zinc for enhanced durability and corrosion protection. The socket is molded from black thermoplastic (PCT UL 94V-0) insulator, designed for solder termination compatible with 8-26 AWG wires. Rated for up to 7.5A current, with 10 milliohms contact resistance, it operates effectively in a temperature range from -55°C to +150°C. Ideal for computer and peripheral equipment requiring durable and reliable connections.
ITT CANNON DCMM8W8P D-Sub Connector Specifications:
- Wire Gauge Range: 8-26 AWG
- Mating Cycles: 500
- Contact Arrangement: 8W8 (8 empty size 8 cavities)
- Dielectric Withstanding Voltage: 500 VAC at sea level
- Current Rating: 7.5A max
- Contact Resistance: 10 milli Ohm max
- Operating Temperature: -55°C to +150°C
- Shell Material: Steel
- Shell Finish: Yellow chromate over zinc
- Insulator Material: Thermoplastic (PCT UL 94V-0)
- Insulator Color: Black
- Contact Type: Solder pot
- Contact Material: Copper alloy
- Contact Finish: Gold over nickel
- Mounting Method: 120" (3.05mm) Through Hole
Buy the Cannon Series COMBO D D-Sub: DCMM8W8P
Purchase the Cannon Series COMBO D D-Sub connector online today for reliable performance in your electronic and computer applications. Featuring gold-over-nickel contacts and a steel shell finished with yellow chromate over zinc, this 8-position connector offers durability and corrosion resistance. It accepts 8-26 AWG wires, supports 500 mating cycles, and operates from -55°C to +150°C, making it ideal for a wide range of industrial, communication, and peripheral equipment for dependable, long-lasting connections.
Order your Cannon Series COMBO D D-Sub connector today and ensure reliable, high-performance connections for your computer and peripheral projects.
Frequently Asked Questions
Where can I buy ITT CANNON DCMM8W8P?
You can click on the BUY or RFQ button to purchase DCMM8W8P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DCMM8W8P?
You can download the DCMM8W8P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DCMM8W8P?
ITT CANNON
