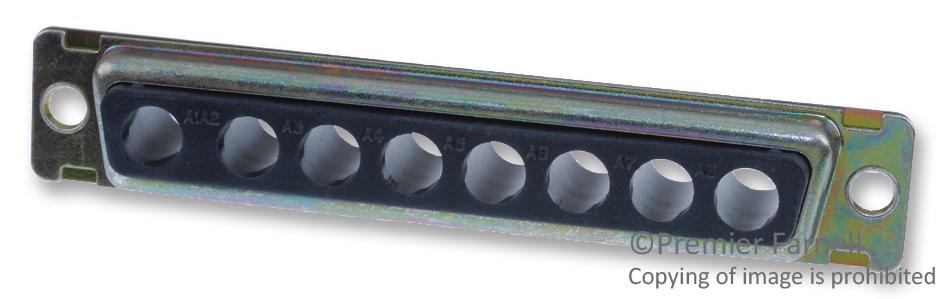

ITT CANNON DCMM8W8S Industrial D-Sub Connector
The DCMM8W8S is a robust 8-way solder-type D-subminiature connector designed for reliable industrial use. Featuring gold-plated copper contacts and a zinc-plated steel shell, it ensures excellent conductivity and durability. The black thermoplastic insulator provides insulation and resistance to harsh environments. Compatible with wire sizes from 26 to 8 AWG, it supports 500 mating cycles and withstands dielectric voltages of 500 VAC at sea level. Operating efficiently from -55°C to +125°C, this connector is ideal for demanding applications in automation, control systems, and machinery.
ITT CANNON DCMM8W8S Industrial D-Sub Connector Specifications:
- Wire Gauge Range: AWG 8-26
- Mating Cycles: 500
- Contact Arrangement: 8W8 (8 empty cavities)
- Dielectric Withstanding Voltage: 500 VAC at sea level
- Current Rating Signal Contacts: 7.5 max
- Contact Resistance: 10 milli Ohm max
- Operating Temperature: -55°C to +150°C
- Shell Material: Steel with yellow chromate over zinc finish
- Insulator Material: Thermoplastic, UL 94V-0
- Insulator Color: Black
- Contact Type: Solder pot
- Contact Material: Copper alloy
- Contact Finish: Gold over nickel (Performance Class 1)
- Mounting Method: 120 inch (3.05 mm) through hole
Buy the Cannon DCMM8W8S – Reliable D-Subminiature for Industrial Applications
Purchase the Cannon DCMM8W8S online and experience reliable, high-quality connectivity solutions. Designed for demanding industrial environments, it features gold-plated contacts, a rugged steel shell, and a durable thermoplastic insulator. With a supporting wire range of 26 to 8 AWG, it offers 500 mating cycles and dielectric voltage resistance of 500 VAC. Suitable for automation, manufacturing, and control systems, this connector operates within -55°C to +150°C, ensuring long-lasting performance in even the harshest conditions.
Get Cannon DCMM8W8S today—built for precision, durability, and high-performance industrial connectivity.
Frequently Asked Questions
Where can I buy ITT CANNON DCMM8W8S?
You can click on the BUY or RFQ button to purchase DCMM8W8S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DCMM8W8S?
You can download the DCMM8W8S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DCMM8W8S?
ITT CANNON
