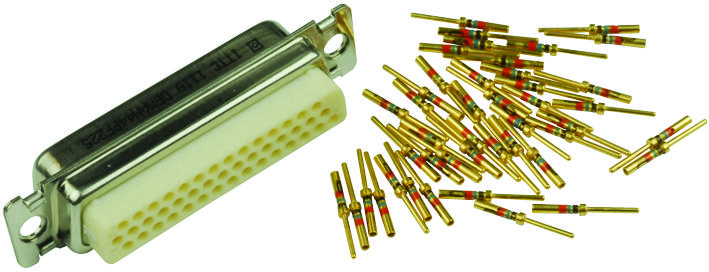

ITT CANNON DDMAM78PF225 Industrial D-Sub Connector
The DDMAM78PF225 is a high-reliability D-Sub connector designed for industrial and electronic applications. It features 78 contacts with a pin gender, crimp contact type, and a durable stainless steel shell with passivation for enhanced corrosion resistance. The connector supports a wire gauge range of AWG 20-28, with high-density options for AWG 22-28, and has a current rating of 7.5 Amax. It withstands dielectric voltages up to 1000 VAC at sea level and operating temperatures between -55°C and +150°C, suitable for demanding environments requiring robust electrical connectivity.
ITT CANNON DDMAM78PF225 Industrial D-Sub Connector Specifications:
- Number of contacts: 78
- Contact gender: Pin
- Contact type: Crimp
- Contact material: Copper alloy
- Contact finish: Gold over nickel
- Shell material: Passivated stainless steel
- Shell finish: Stainless steel
- Insulator material: Thermoplastic, UL 94V-0
- Wire gauge range: AWG 20-28 (standard), AWG 22-28 (high density)
- Current rating: 7.5 A max
- Dielectric withstanding voltage: 1000 VAC at sea level
- Operating temperature: -55°C to +150°C
- Salt spray resistance: 48 hours (96 hours for stainless steel)
- Mating cycles: 500
- Hardware: 3.05 mm through hole
Buy the Cannon DDMAM78PF225 – Reliable D-Sub Connector for Industrial Applications
Purchase the Cannon DDMAM78PF225 online to ensure reliable, high-performance electrical connections for industrial and electronic systems. This 78-pin D-Sub connector features a stainless steel shell, gold-plated contacts, and a robust thermoplastic insulator, making it suitable for harsh environments. With a current rating of 7.5 Amax and a dielectric voltage of 1000 VAC, it offers excellent durability, corrosion resistance, and high-density options. Order now for quick delivery and trusted quality designed for extensive usage in demanding applications.
Get Cannon DDMAM78PF225 today—built for precision, corrosion resistance, and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy ITT CANNON DDMAM78PF225?
You can click on the BUY or RFQ button to purchase DDMAM78PF225 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DDMAM78PF225?
You can download the DDMAM78PF225 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DDMAM78PF225?
ITT CANNON
