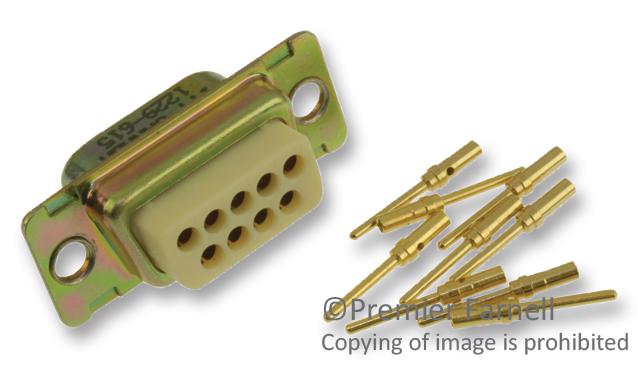

ITT CANNON DEMA9P D-Sub Connector
The DEMA9P is a high-reliability solder cup crimp D-Sub connector designed for secure electrical connections in various industrial applications. It features 9 contacts suited for wire gauges AWG 20-28, with a maximum current rating of 7.5A and a dielectric withstand voltage of 1000VAC at sea level. Constructed with tin-plated steel shell and gold-over-nickel contact finish, it ensures durability and corrosion resistance. The connector withstands up to 200 mating cycles and operates efficiently across temperatures from -55°C to +125°C, making it versatile for demanding environments.
ITT CANNON DEMA9P D-Sub Connector Specifications:
- Number of contacts: 9
- Contact size: 20 AWG
- Wire gauge range: AWG 20-28
- Mating cycles: 200
- Dielectric withstanding voltage: 1000 VAC at sea level
- Current rating: 7.5 A maximum
- Contact resistance: 10 milli Ohm max
- Operating temperature: -55°C to +125°C
- Shell material: Steel
- Shell finish: Tin
- Insulator material: Thermoplastic, UL 94V-0, black
- Contact material: Copper alloy
- Contact finish: Gold over nickel
- Hardware: 120-inch (3.05 mm) through hole
- Salt spray test duration: 24 hours
Buy the Buy Cannon DSub Part Number DEMA9P Online
Enhance your wiring solutions with the DEMA9P high-reliability D-Sub connector, designed with durable materials and precise engineering. Its 9-pin configuration, gold-plated contacts, and rugged steel shell ensure excellent signal integrity and corrosion resistance. Perfect for industrial, military, and automation systems, this connector offers 200 mating cycles, high-temperature resilience, and broad compatibility with AWG 20-28 wires. Purchase online today to benefit from fast delivery and technical support, ensuring your projects meet the highest standards of quality and durability.
Buy Cannon DEMA9P now and experience unmatched reliability and high-performance connectivity for industrial and electronic applications.
Frequently Asked Questions
Where can I buy ITT CANNON DEMA9P?
You can click on the BUY or RFQ button to purchase DEMA9P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DEMA9P?
You can download the DEMA9P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DEMA9P?
ITT CANNON
