ITT CANNON DL360R High-Density Signal Connector
The DL3-60R is a high-performance 60-way receptacle with gold-flash copper alloy contacts, designed for quick, reliable connections in industrial, medical, and computer applications. It features a black glass-filled thermoplastic insulator, enabling mating and unmating in less than two seconds with single-hand actuation. The connector accommodates wire sizes from 42 to 18 AWG, with an insulation resistance of 5000 MΩ and a maximum operating temperature of -55°C to +105°C. It adheres to UL94V-1 flammability standards, ensuring safety and durability in demanding environments.
ITT CANNON DL360R High-Density Signal Connector Specifications:
- Contacts: Copper alloy, gold-flash over nickel
- Number of contacts: 60
- Wire sizes: #42 to #18 AWG
- Insulation Resistance: 5000 MΩ minimum
- Operating Temperature: -55°C to +105°C
- Flammability: UL 94V-1 rated
- Mating/Unmating Cycles: 10,000 minimum
- Connection type: Solder or crimp
- Current rating: 0.5 A per contact
- Connectors can be mated/unmated in less than 2 seconds using actuating handle
- Housing: Black glass-filled thermoplastic
- Designed for high reliability and rugged applications

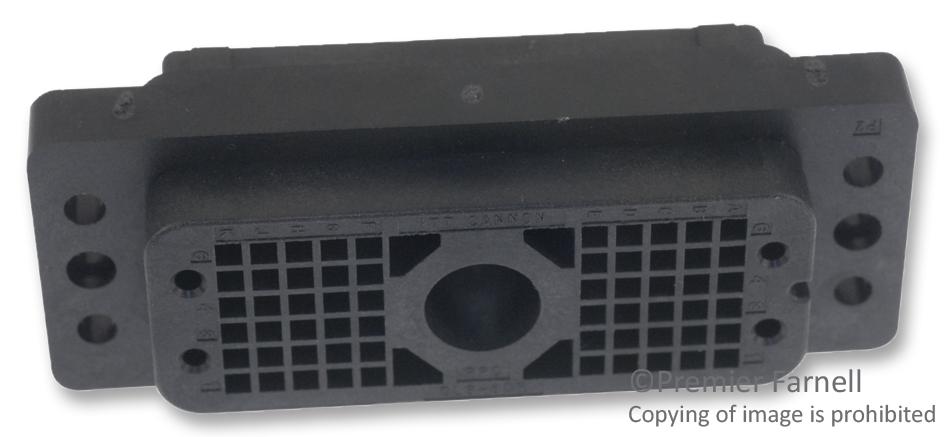

Buy the Buy ITT DL3-60R Receptacle Part Number DL360R Online
Order the ITT DL3-60R high-density signal connector online now for durable, fast-mating performance in demanding environments. Equipped with gold-flash contacts, this rugged connector ensures reliable electrical performance in medical, industrial, and computer applications. Its quick connect/disconnect feature simplifies installation and maintenance, saving time and reducing downtime. The DL3-60R operates within a wide temperature range of -55°C to +105°C, and adheres to UL94V-1 flame rating standards, making it an ideal choice for a broad spectrum of rugged, high-reliability systems. Purchase today for guaranteed quality and performance tailored to your technical needs.
Get ITT DL3-60R today—built for rapid, reliable connections in industrial and medical systems.
Frequently Asked Questions
Where can I buy ITT CANNON DL360R?
You can click on the BUY or RFQ button to purchase DL360R from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DL360R?
You can download the DL360R datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DL360R?
ITT CANNON
