ITT CANNON KPT01F106P Miniature Circular Connector
The KPT01F10-6P, part of the ITT Cannon KPT series, is a miniature circular cable mount receptacle conforming to MIL-DTL-26482 series I standards. It features six contacts and a bayonet coupling mechanism that ensures quick and reliable mating and unmating, with positive engagement. The connector is environmentally sealed to IP68 rating, capable of withstanding harsh conditions including extreme shock, vibration, and salt spray exposure for up to 500 hours. Its operating temperature ranges from -55°C to +125°C, and it supports up to 500 mating cycles. The connector’s design includes a resilient neoprene insulator and grommet, with an aluminum alloy body finished in olive drab chromate over cadmium plating. Copper alloy solder pin contacts are gold-plated for conductivity and durability. It is suitable for industrial and commercial applications, offering high contact density, ease of assembly, and compatibility with other MIL-DTL-26482 connectors. Design modifications are low-cost and straightforward, making it a versatile choice for demanding environments.
ITT CANNON KPT01F106P Miniature Circular Connector Specifications:
- Shell Style: Shell style cable connecting plug
- Endbell Style: Grommet seal with strain relief
- Gender: Pin
- Shell Size: 10
- Contact Arrangement: 10-6
- Number of contacts: 6
- Contact Size: 20
- Contact Type: Solder cup
- Contact Plating: Gold plated
- Shell Material: Aluminum alloy
- Shell Plating: Olive drab chromate over cadmium
- Insulator & Grommet Material: Polychloroprene
- Contact Material: Copper alloy
- Water Tightness: IP67 to DIN 40 050, withstands 0.2 bar pressure over 48 hours
- Operating Temperature: -55°C to +125°C
- Mating Cycles: 500 minimum
- Vibration: 200 m/s² at 10 to 2000 Hz
- Contact Rating: 7.5A at AWG20
- Insulator Resistance: ≥5000 MΩ
- Test Voltage: 1500 V rms
- Compliance: Meets VG95319, VG95210 standards
- Operating Voltage: Use according to DIN VDE 410 and IEC 60364-4-41

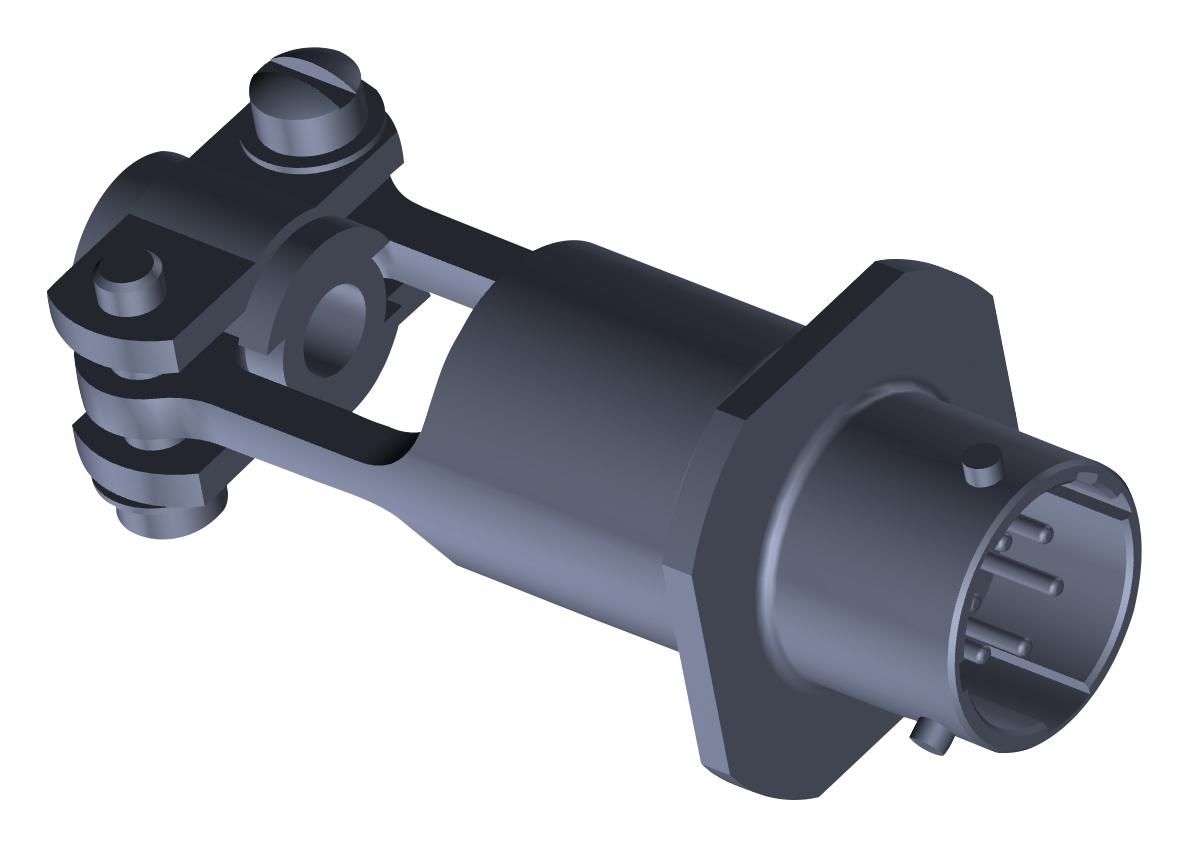

Buy the Cannon Series KPT MIL-DTL-26482 Connector: KPT01F10-6P
Discover the reliability and durability of the miniature circular connector from the KPT series, compliant with MIL-DTL-26482 standards. Designed for harsh environments, it features six gold-plated copper contacts, an aluminum alloy body, and an IP68 rating for water and dust resistance. The connector supports up to 500 mating cycles and operates efficiently between -55°C and +125°C. Its quick bayonet coupling mechanism ensures fast assembly and disassembly, making it perfect for industrial, military, or electronics applications requiring rugged and sealed connections. Order online now and secure dependable performance.
Order your Cannon Series KPT01F10-6P connector today and ensure reliable, sealed connections for demanding industrial environments.
