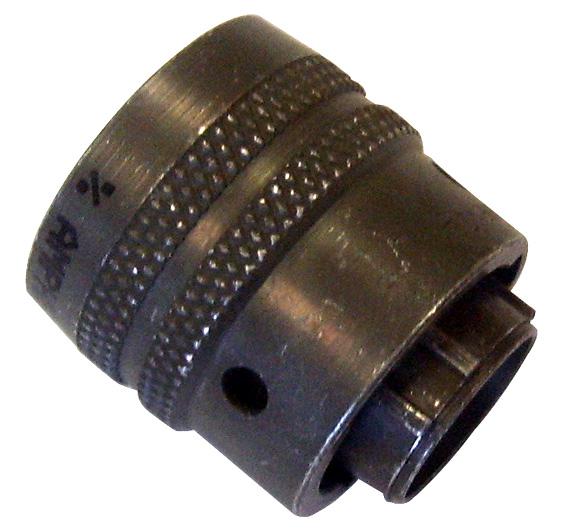

ITT CANNON KPT06F106S Circular Connector
The KPT06F10-6S from ITT Cannon is a high-performance circular connector designed for harsh environments, meeting MIL-DTL-26482 Series I standards. It features a straight plug shell style with six solder cup contacts, sealed with Grommet for water resistance and strain relief. Constructed from lightweight aluminum alloy with olive drab chromate over cadmium, it ensures durability and corrosion resistance. Rated for operating temperatures from -55°C to +125°C, this connector withstands 500 mating cycles, vibration, and salt spray, making it ideal for military, industrial, and aerospace applications where reliability and environmental sealing are crucial.
ITT CANNON KPT06F106S Circular Connector Specifications:
- Shell Style: Straight plug with grommet seal and strain relief
- Shell Material: Aluminum alloy with olive drab chromate over cadmium plating
- Contact Arrangement: 10-6, 6 contacts size 20, solder cup contacts
- Contact Material: Copper alloy, gold plated
- Water Tightness: IP67/IP68 according to DIN 40 050
- Operating Temperature: -55°C to +125°C
- Vibration Resistance: 200 m/s² at 10Hz to 2000Hz
- Mating Cycles: Minimum 500 cycles
- Contact Rating: 7.5A at AWG20
- Insulator Resistance: ≥5000 MΩ
- Test Voltage: 1500 V rms
- Salt Spray Resistance: 500 hours
- Operating Voltage: As per DIN VDE 410, IEC 60364-4-41
- Certifications: MIL-DTL-26482 Series I compliant
Buy the ITT Circular PartKPT06F10-6S – Reliable Circular Connectors for Industrial Applications
Discover the ITT Cannon KPT06F10-6S circular connector, engineered for rugged industrial and military use. With six solder cup contacts, IP67/IP68 sealing, and a robust aluminum body, this connector provides excellent environmental resistance, vibration durability, and high electrical performance. Rated for -55°C to +125°C, it withstands salt spray for 500 hours, making it ideal for harsh conditions. Easy to assemble with clip-in contacts and intermateable with MIL-DTL-26482 standards, this connector guarantees reliable, secure connections on critical projects worldwide.
Order your ITT Series KPT06F10-6S circular connector today and ensure reliable connection in demanding industrial or military environments.
Frequently Asked Questions
Where can I buy ITT CANNON KPT06F106S?
You can click on the BUY or RFQ button to purchase KPT06F106S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part KPT06F106S?
You can download the KPT06F106S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of KPT06F106S?
ITT CANNON
