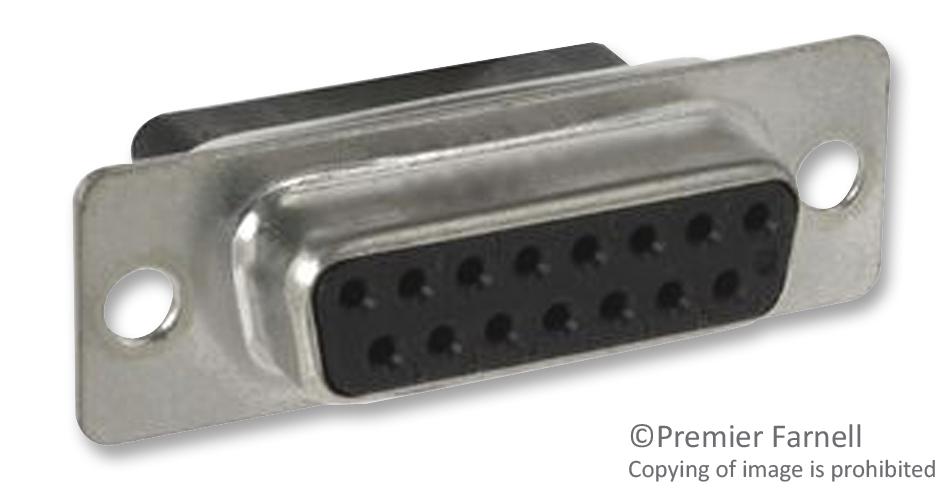

ITT CANNON M2430822Z D-Sub Receptacle
The M24308/2-2Z is a 15-position D-sub receptacle featuring a steel shell and designed for crimp contact termination. It is ideal for high-reliability connections in aerospace, military, and computer systems, providing excellent environmental resistance, including vibration, moisture, and corrosion. This durable connector supports multiple mounting styles and is supplied with dust caps and removable potting caps for protection. Its robust construction and precise specifications make it suitable for use in demanding industrial and aerospace applications, ensuring long-lasting, secure electrical connections.
ITT CANNON M2430822Z D-Sub Receptacle Specifications:
- Shell Material: Steel with cadmium plating and yellow chromate coating
- Number of Positions: 15
- Contact Termination: Crimp type, supporting #20, #22, and #24 AWG stranded wire
- Contact Material: Copper alloy, gold plated .00002 (.0005) over nickel .00004 (.0010)
- Voltage Rating: Not specified, suitable for high-reliability applications
- Environmental Resistance: Vibration, corrosion, moisture, and shock resistant per MIL standards
- Dust Caps: Included, removable potting caps for environmental sealing
- Mounting Style: Standard and float mounts available
- Maximum Altitude: 70,000 feet
- Dimensions: Panel cutout 0.120 inches (3.05 mm) recommended, with precise shell dimensions specified
- Temperature Range: Suitable for demanding aerospace and industrial environments
- Certifications: MIL-C-24308 compliant
- Air Leakage: Less than 1 cubic inch per hour at 30 PSI pressure differential
- Sealing: Effective from full engagement to nearly full engagement, ensuring environmental protection
- Durability: Contact retention force minimum 8 pounds, with resistance to corrosion and vibration
Buy the Buy ITT Cannon D-Sub Receptacle Part Number M2430822Z Online
Order the ITT Cannon M2430822Z D-Sub Receptacle online now to ensure reliable, secure connections for aerospace, military, and industrial applications. Featuring a durable steel shell, crimp contacts, and comprehensive environmental resistance, this 15-position connector is ideal for high-reliability systems. It comes with dust covers and removable potting caps to protect against moisture and dust ingress. Designed to meet MIL standards, it supports various mounting styles, including standard and float mounts. Purchase today for long-lasting, dependable electrical connections in demanding environments.
Get ITT Cannon M2430822Z today—built for secure, high-performance connections in aerospace and industrial environments.
Frequently Asked Questions
Where can I buy ITT CANNON M2430822Z?
You can click on the BUY or RFQ button to purchase M2430822Z from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part M2430822Z?
You can download the M2430822Z datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of M2430822Z?
ITT CANNON
