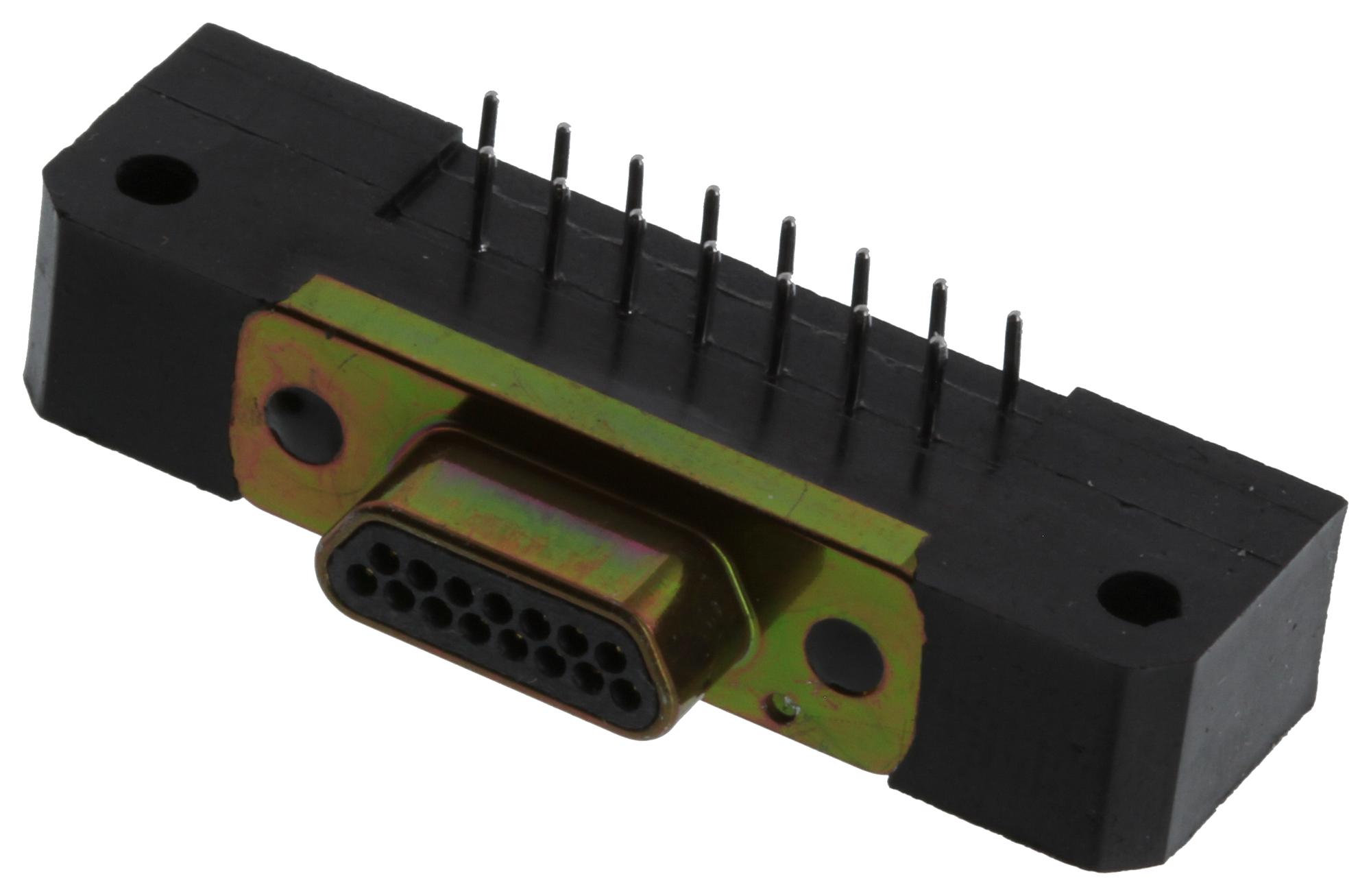

ITT CANNON MDM15PBR Micro Miniature Connector
The MDM15PBR is a high-reliability micro miniature connector designed for demanding aerospace, defense, industrial, and medical applications. Featuring a rugged aluminum shell with electroless nickel plating and a liquid crystal polymer insulator, it accommodates 15 contacts arranged at .050 inch centers. The connector employs a micro twist pin contact system for superior electrical performance and durability, supporting up to 3A current. Its sealed interfacial design ensures moisture resistance and EMI shielding, making it ideal for high-density, harsh environment electronic systems requiring compact form factors and reliable signal transfer.
ITT CANNON MDM15PBR Micro Miniature Connector Specifications:
- Shell Material: 6061-T6 Aluminum alloy, electroless nickel plated
- Insulator Material: Liquid Crystal Polymer per MIL-M-24519
- Contact Arrangement: 15 contacts at .050 inch centers
- Contact Type: Copper alloy, gold plated
- Current Rating: 3 Amps
- Dielectric Withstanding Voltage: 600 VAC at sea level, 150 VAC at 70,000 ft altitude
- Insulation Resistance: > 100 megaohms
- Contact Resistance: 8 milliohms maximum
- Environmental rating: -55°C to +125°C
- Connection: Friction/jackscrew coupling, keystone-shaped shells
- Wire Size: #24 to #32 AWG
- Termination: Crimp or solder pot (special order)
- Mechanical Durability: 500 mating cycles
- Sealing: Silicone elastomer compression interface for moisture and humidity resistance
Buy the ITT Cannon MDM15PBR – Reliable Micro Miniature Connector for Aerospace Applications
Order the ITT Cannon MDM15PBR online today to secure a compact, high-performance connector designed for demanding aerospace, defense, and industrial systems. Featuring rugged aluminum shells, gold-plated contacts, and advanced sealing for reliability in extreme environments, this connector ensures high-quality signal transfer with minimal size. Easy to assemble with crimp or solder terminations, it is ideal for high-density applications that require exceptional durability, EMI shielding, and moisture resistance. Trust ITT Cannon for precision engineering and dependable performance in critical electronic connections.
Get ITT Cannon MDM15PBR today—built for high-density and harsh environment aerospace and industrial systems.
Frequently Asked Questions
Where can I buy ITT CANNON MDM15PBR?
You can click on the BUY or RFQ button to purchase MDM15PBR from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MDM15PBR?
You can download the MDM15PBR datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MDM15PBR?
ITT CANNON
