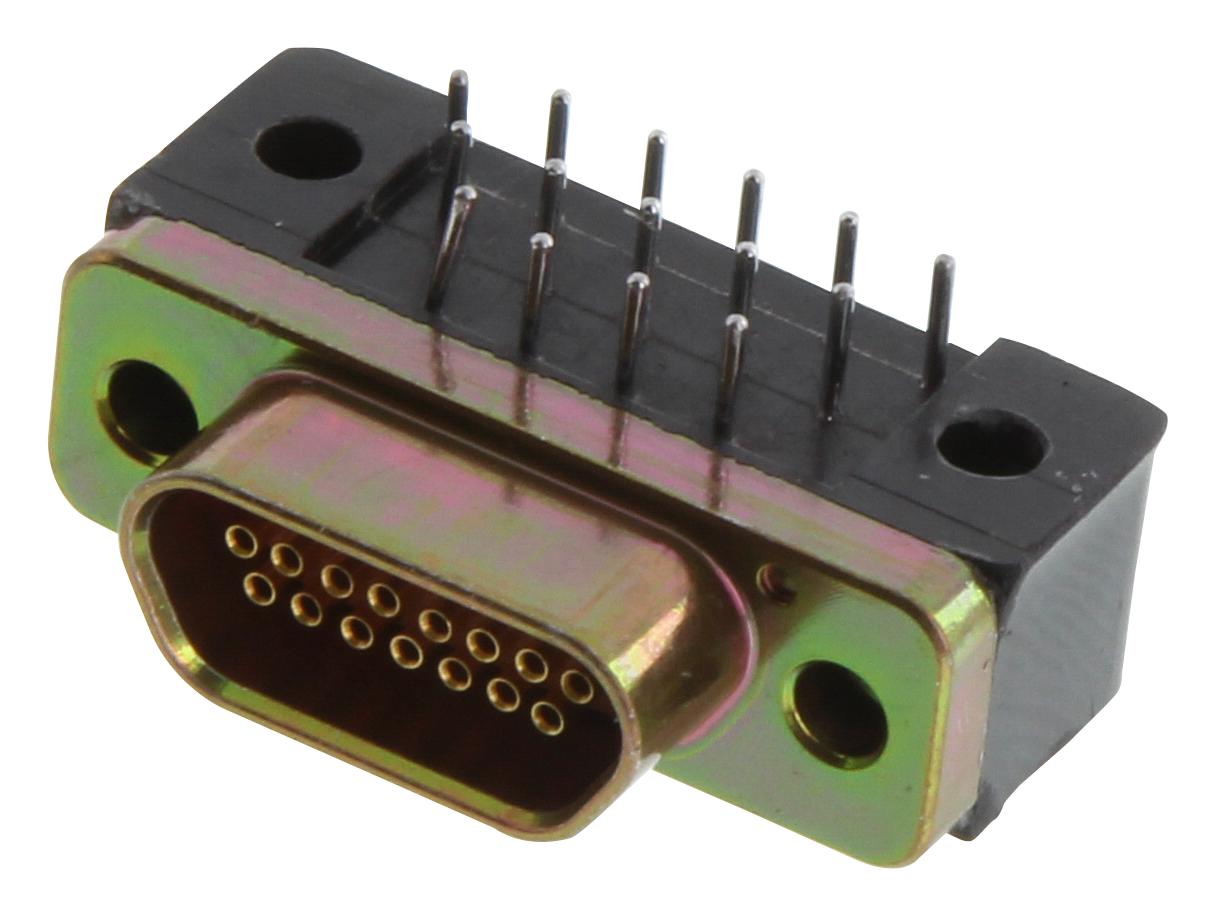

ITT CANNON MDM15SCBR Micro-D Connector
The Micro-D Metal Shell - .050” Contact Spacing connector series offers high-density, lightweight interconnect solutions for demanding aerospace, military, industrial, and medical applications. Constructed from 6061-T6 aluminum alloy with a yellow chromate/cadmium coating over electroless nickel, these connectors feature liquid crystal polymer or polyphenylene sulfide insulators and gold-plated copper alloy contacts. They support 9 to 100 contacts with various configurations, including coaxial and power contacts, and are designed to withstand extreme environments with a dielectric withstanding voltage of 600 VAC, insulation resistance of 5000 megaohms, and operating temperatures from -55°C to +125°C. Easy to assemble, highly reliable, and compliant with MIL-DTL-83513 standards, they are ideal for aerospace, defense, industrial automation, and medical electronics.
ITT CANNON MDM15SCBR Micro-D Connector Specifications:
- Shell Material: 6061-T6 aluminum alloy with yellow chromate/cadmium coating over electroless nickel
- Insulator Material: Liquid Crystal Polymer or polyphenylene sulfide, depending on model
- Contacts: Copper alloy, gold plated
- Contact Spacing: .050 inch centers
- Number of Contacts: 9 to 100, in various configurations including coaxial and power contacts
- Wire Size: #24 to #32 AWG
- Termination: Crimp, solder pot options available
- Dielectric Withstanding Voltage: 600 VAC at sea level
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -55°C to +125°C
- Durability: 500 mating cycles
- Mechanical Features: Friction/jackscrews, keying polarization, keyway polarization
- Standards: Conforms to MIL-DTL-83513
- Physical Dimensions: Varies by shell size (application specific)
- Other Features: Moisture resistance, EMI/RFI shielding, high reliability for harsh environments
Buy the Buy ITT Cannon Micro-D Connector Part Number MDM15SCBR Online
Discover the ITT Cannon Micro-D Connector with part number MDM15SCBR, a versatile, lightweight, and highly engineered high-density interconnect solution. Crafted from durable aluminum with a yellow chromate/cadmium finish over electroless nickel, it features gold-plated copper contacts supporting 9 to 100 contact configurations including coaxial and power options. This MIL-DTL-83513-compliant connector withstands temperatures from -55°C to +125°C, ensures 500 mating cycles, and provides 600 VAC dielectric withstanding voltage. Its reliability in aerospace, defense, industrial, and medical applications makes it an essential component for harsh environments requiring secure, precise connections.
Buy ITT Cannon Micro-D Connector Part Number MDM15SCBR now and experience unmatched reliability, high-density interconnection, and robust environmental performance.
Frequently Asked Questions
Where can I buy ITT CANNON MDM15SCBR?
You can click on the BUY or RFQ button to purchase MDM15SCBR from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MDM15SCBR?
You can download the MDM15SCBR datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MDM15SCBR?
ITT CANNON
