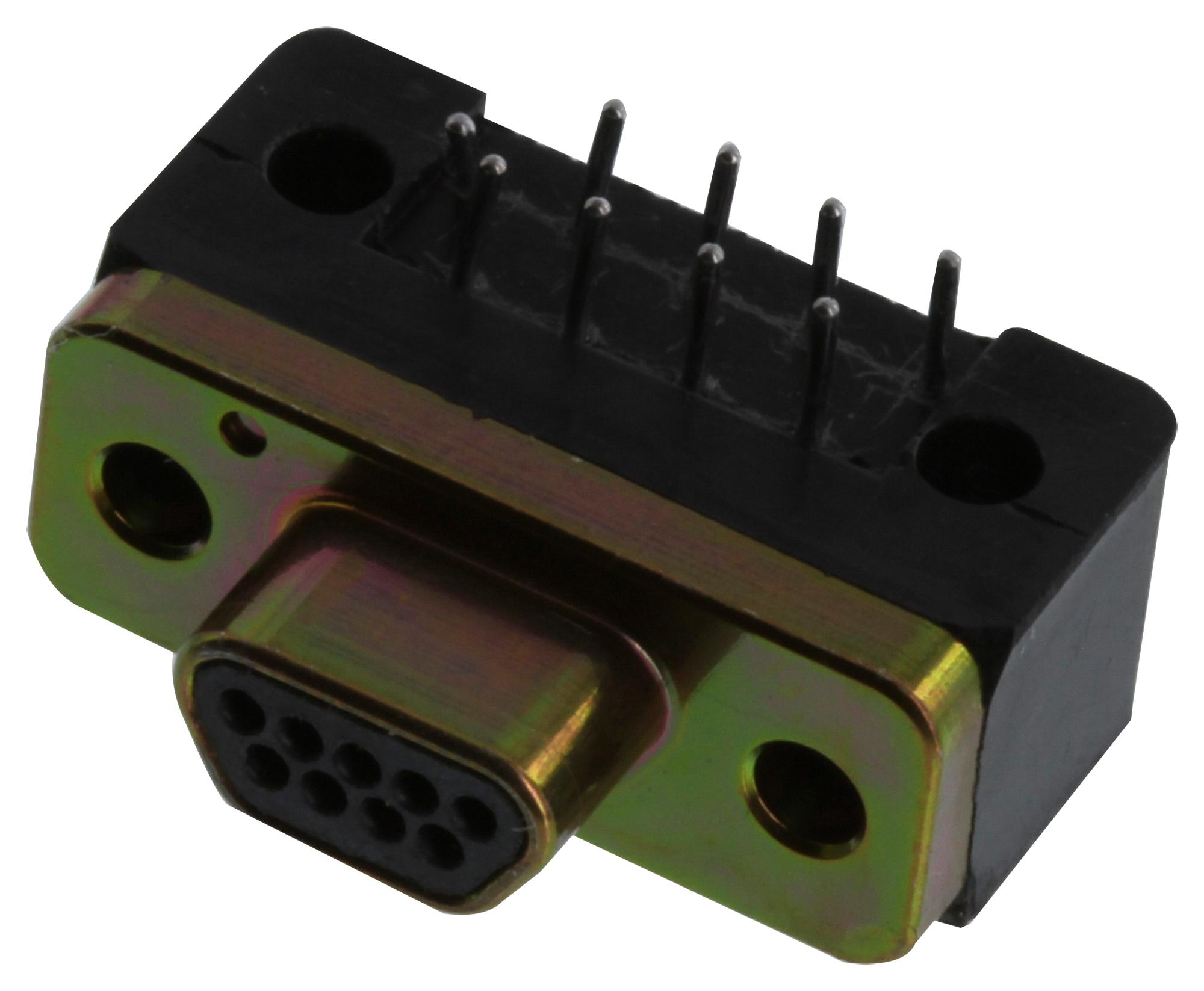

ITT CANNON MDM9PCBR Micro-D Connector
The Micro-D Metal Shell connector offers reliable miniature interconnect solutions with four shell sizes accommodating up to 100 contacts. Made from durable 6061-T6 aluminum with corrosion-resistant finishes, it features gold-plated copper alloy contacts and stainless steel hardware options. Designed for harsh environments, it provides excellent EMI/RFI shielding, moisture sealing via silicone elastomer interfaces, and high durability with 500 mating cycles. Widely used in aerospace, defense, industrial, and medical applications, this connector ensures high performance, small size, and robust electromagnetic shielding for demanding high-density interconnect needs.
ITT CANNON MDM9PCBR Micro-D Connector Specifications:
- Shell Material: 6061-T6 Aluminum alloy with yellow chromate/cadmium over electroless nickel finish
- Insulator Material: Liquid Crystal Polymer, Diallyl Phthalate, Polyphenylene Sulfide, or Polyester per MIL specifications
- Contact Material: Copper alloy, gold plated
- Hardware: 300 or 400 Series stainless steel, passivated
- Contacts: Up to 100, sizes 9 to 100, configured with Power and Coaxial options
- Electrical Rating: 600 VAC dielectric withstanding voltage, 150 VAC at 70,000 ft altitude
- Insulation Resistance: > 5000 megaohms
- Contact Resistance: < 8 milliohms
- Durability: 500 mating cycles
- Temperature Range: -55°C to +150°C for standard, high temp versions up to +230°C
- Sealing: Silicone elastomer compression interfacial seal
- Mounting: Hardware options include jackposts, jackscrews, or clip mounting
- Connection: Friction/jackscrew coupling, polarization keyed to prevent cross-mating
- Application: Suitable for aerospace, defense, industrial, and medical harsh environment uses
Buy the ITT Cannon MDM9PCBR – Reliable Micro-D Connector for Industrial Applications
Discover the high-performance ITT Cannon Micro-D Connector, designed for demanding aerospace, defense, and industrial applications. Featuring durable aluminum shells, gold-plated contacts, and moisture sealing, this compact connector supports up to 100 contacts and withstands extreme temperatures from -55°C to +150°C. Its corrosion-resistant finishes and robust EMI/RFI shielding make it ideal for harsh environment use. Easy to install with various hardware options, ensuring reliable connectivity in critical high-density applications. Order online now to experience superior quality and durability for your aerospace, medical, or industrial needs.
Get ITT Cannon MDM9PCBR today—built for high reliability and extreme environments in aerospace, defense, and industrial systems.
Frequently Asked Questions
Where can I buy ITT CANNON MDM9PCBR?
You can click on the BUY or RFQ button to purchase MDM9PCBR from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MDM9PCBR?
You can download the MDM9PCBR datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MDM9PCBR?
ITT CANNON
