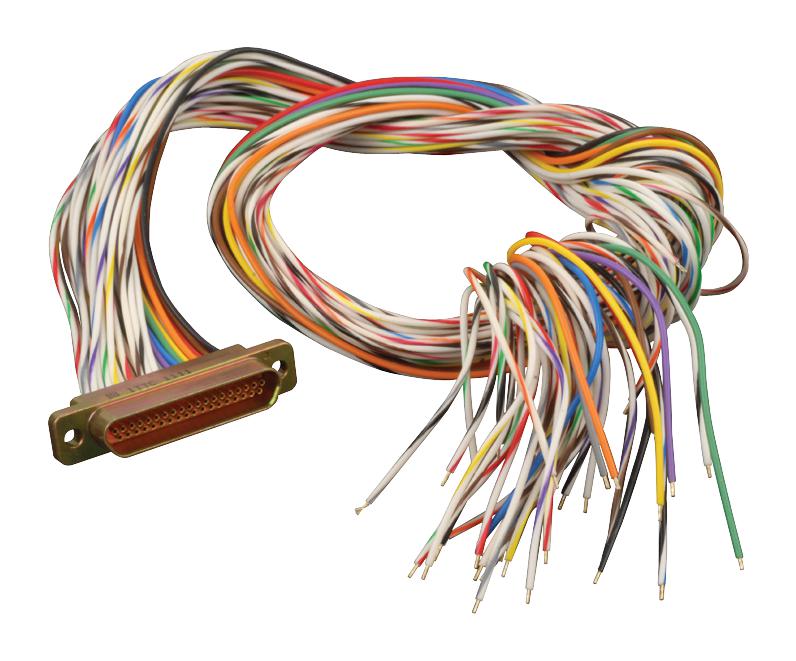

ITT CANNON MDM21SH006BA174F222 Micro Connector
The Micro Series MICR families feature lightweight, high-performance connectors with durable aluminum shells and gold-plated copper alloy contacts, ideal for aerospace, military, and industrial applications. These connectors support up to 3A current, withstand voltages of 600 VAC at sea level, and endure extreme environmental conditions including thermal shocks from -55°C to +200°C, vibrations, and moisture. Designed with liquid crystalline polymer insulators for contact sizes 9 to 100 and Diallyl phthalate for larger arrangements, they offer reliable crimp termination and robust mechanical coupling for critical systems.
ITT CANNON MDM21SH006BA174F222 Micro Connector Specifications:
- Contact Material: Gold plated copper alloy
- Contact Resistance: 8 milliohms max
- Termination Type: 36" min, M16874/4 #26AWG, colored code
- Shell Material: Aluminum
- Shell Finish: Electroless Nickel
- Insulator Material: Liquid crystalline polymer (contact size 9-100), Diallyl phthalate (contacts 7C2 or 24C4)
- Hardware: B .092 dia mounting holes
- Coupling: Friction coupling
- Current Rating: 3A max
- Dielectric Withstanding Voltage: 600 VAC at sea level, 150 VAC at 70,000' altitude
- Insulator Resistance: 5000 megohms min
- Thermal Shock: -55°C to +200°C
- Physical Shock: 50 G's, 3 axes, 6 ms sawtooth pulse
- Vibration: 20 G's, 10-2000 Hz, 12 hours
- Durability: 500 mating cycles
- Moisture Resistance: Insulator resistance > 100 megohms
- Salt Spray Resistance: 48 hours
Buy the Cannon MDM-21SHO06B-A174-F222 – Reliable Micro Connector for Industrial Applications
Order the Micro Connector today to ensure reliable electrical connections in demanding industrial, aerospace, and military systems. Featuring an aluminum shell, gold-plated copper contacts, and a robust design, this connector supports up to 3A and withstands extreme temperatures from -55°C to +200°C. With friction coupling, moisture resistance, and durability for 500 mating cycles, it's ideal for critical applications where performance and longevity are essential. Purchase online for fast delivery and confidence in your connected systems.
Buy Cannon MDM-21SHO06B-A174-F222 micro connector now and experience unmatched reliability and performance in rugged industrial environments.
Frequently Asked Questions
Where can I buy ITT CANNON MDM21SH006BA174F222?
You can click on the BUY or RFQ button to purchase MDM21SH006BA174F222 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MDM21SH006BA174F222?
You can download the MDM21SH006BA174F222 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MDM21SH006BA174F222?
ITT CANNON
