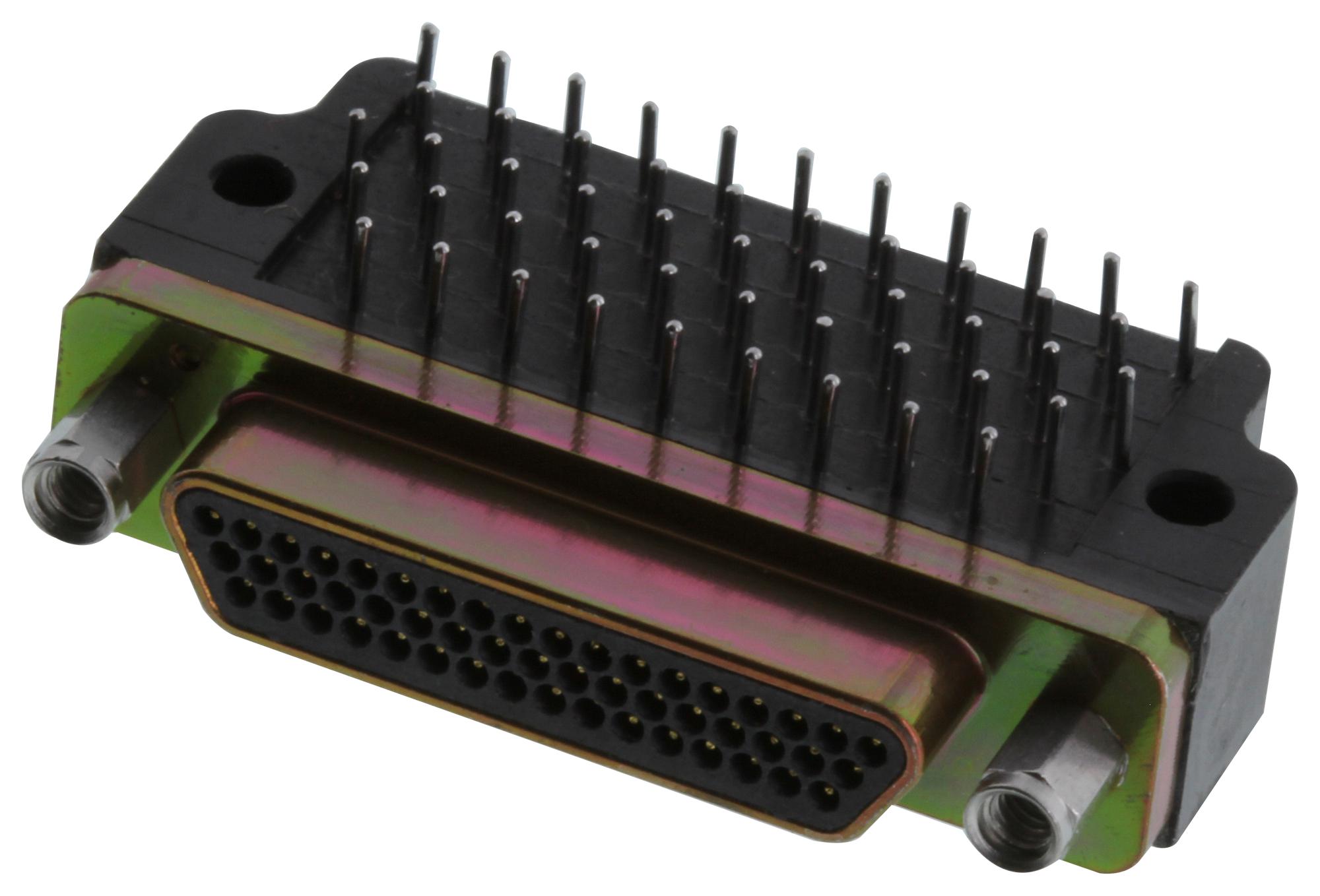

ITT CANNON MDM51PCBRP Micro-D Connector
The Micro-D Metal Shell Connector Series offers high-density, lightweight interconnects with aluminum shells and gold-plated copper contacts. Designed for harsh environments, these connectors feature various insulator materials including liquid crystal polymer and diallyl phthalate, ensuring reliable performance up to 100 contacts in applications like aerospace, medical, and industrial electronics. They provide excellent EMI/RFI shielding, moisture sealing with silicone interfacial seals, and are available in multiple configurations with robust coupling mechanisms. Ideal for space-constrained, high-reliability installations requiring vibration resistance and environmental durability.
ITT CANNON MDM51PCBRP Micro-D Connector Specifications:
- Shell Material: 6061-T6 Aluminum alloy with yellow chromate/cadmium finish over electroless nickel
- Insulator Material: Liquid Crystal Polymer, diallyl phthalate, polyester, or polyphenylene sulfide
- Contact Material: Copper alloy, gold plated
- Contact Sizes: 9 to 100 contacts, with various arrangements including coaxial and power options
- Contact Spacing: 0.050 inch centers (1.27 mm)
- Current Rating: 3 Amps per contact
- Dielectric Withstanding Voltage: 600 VAC at sea level, 150 VAC at 70,000 ft altitude
- Insulation Resistance: > 100 megaohms
- Mating Durability: 500 cycles
- Environmental Resistance: Moisture, vibration, thermal shock, salt spray resistance
- Termination: Crimp, solder pot, or harnessed pigtails
- Hardware: Steel jackposts, stainless steel passivated jackscrews, optional back mounting
Buy the ITT Cannon Micro-D Metal Shell – Reliable High-Density Interconnect for Aerospace and Industrial Use
Discover ITT Cannon’s Micro-D Connector, engineered for critical applications requiring rugged, high-density, lightweight interconnects. Featuring aluminum shells with gold-plated copper contacts, these connectors provide excellent EMI/RFI shielding, environmental sealing, and Vibration resistance. Suitable for aerospace, medical, and industrial equipment, they support up to 100 contacts with reliable crimp or solder terminations. Designed with precision and durability in mind, these connectors ensure optimal performance under extreme conditions, offering a trusted solution for complex, high-reliability interconnect needs.
Order your ITT Cannon Micro-D Metal Shell Connector today and ensure high-performance, rugged reliability for your aerospace, defense, and industrial projects.
Frequently Asked Questions
Where can I buy ITT CANNON MDM51PCBRP?
You can click on the BUY or RFQ button to purchase MDM51PCBRP from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MDM51PCBRP?
You can download the MDM51PCBRP datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MDM51PCBRP?
ITT CANNON
