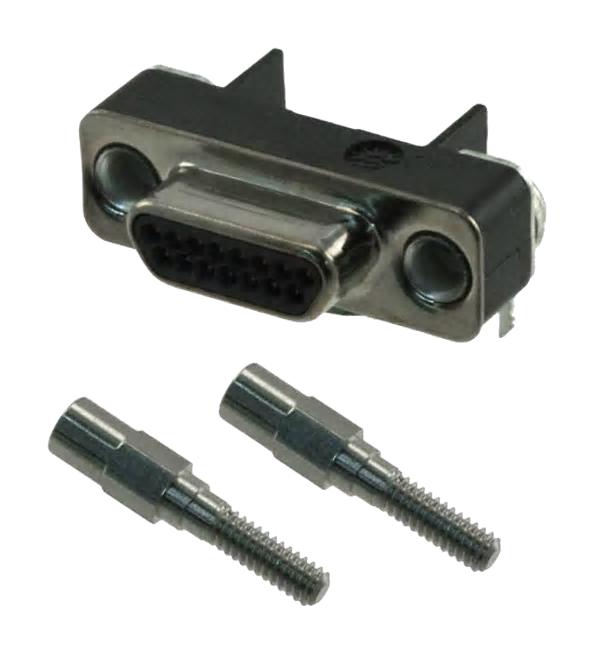

ITT CANNON MDSM15PEZ10VR22 Micro connector with 15 contacts
The MDSM-15PE-Z10-VR22 is a high-quality micro connector featuring 15 contacts, designed for electronic applications requiring reliable solder pin terminations. Constructed with tinned nickel-plated steel shells and copper alloy contacts with gold over PdNi finish, it offers excellent durability, corrosion resistance, and electrical performance. The connector supports a current of 2.5A at 25°C, with a maximum insulation diameter of 0.95mm, and a contact resistance of 35 milliohm. Its compact size and high mating cycles make it ideal for precise, secure connections in industrial and electronic systems, rated for -55°C to +125°C temperatures.
ITT CANNON MDSM15PEZ10VR22 Micro connector with 15 contacts Specifications:
- Contacts: 15, copper alloy with gold over PdNi finish
- Shell: Steel, tinned and nickel plated
- Termination: Solder pin, 90°, spacing 1.27 x 2.54 mm, with rivet nut and grounding tab
- Mounting: Screw for wall thickness 1.5 mm
- Packaging: 22 pieces in tube packaging
- Insulator: Thermoplast, UL94V-0
- Contact guiding plate: PA, high temperature resistant
- Wire size: AWG 26 - 28
- Insulation diameter: Max 0.95 mm
- Contact spacing: 4.27 mm
- Temperature range: -55°C to +125°C
- Current rating: 2.5 A at 25°C
- Test voltage: 350 Vrms
- Contact resistance: Max 35 mOhm
- Insulation resistance: Min 500 MOhm
Buy the Cannon MDSM-15PE-Z10-VR22 – Reliable Micro Connector for Industrial Applications
Order the Cannon MDSM-15PE-Z10-VR22 micro connector online today to ensure high-quality, reliable connections for your electronic and industrial projects. Featuring 15 contacts, solder pin termination, and a durable construction with gold over PdNi finish, it supports a current of 2.5A at 25°C and withstands temperatures from -55°C to +125°C. Packaged in convenient tube boxes, this connector offers excellent electrical performance, corrosion resistance, and durability. Perfect for tight spaces, high mating cycles, and demanding environments, ensuring your system's stability and efficiency.
Buy Cannon MDSM-15PE-Z10-VR22 now and experience unmatched reliability and performance in your precise electronic and industrial connections.
Frequently Asked Questions
Where can I buy ITT CANNON MDSM15PEZ10VR22?
You can click on the BUY or RFQ button to purchase MDSM15PEZ10VR22 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MDSM15PEZ10VR22?
You can download the MDSM15PEZ10VR22 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MDSM15PEZ10VR22?
ITT CANNON
