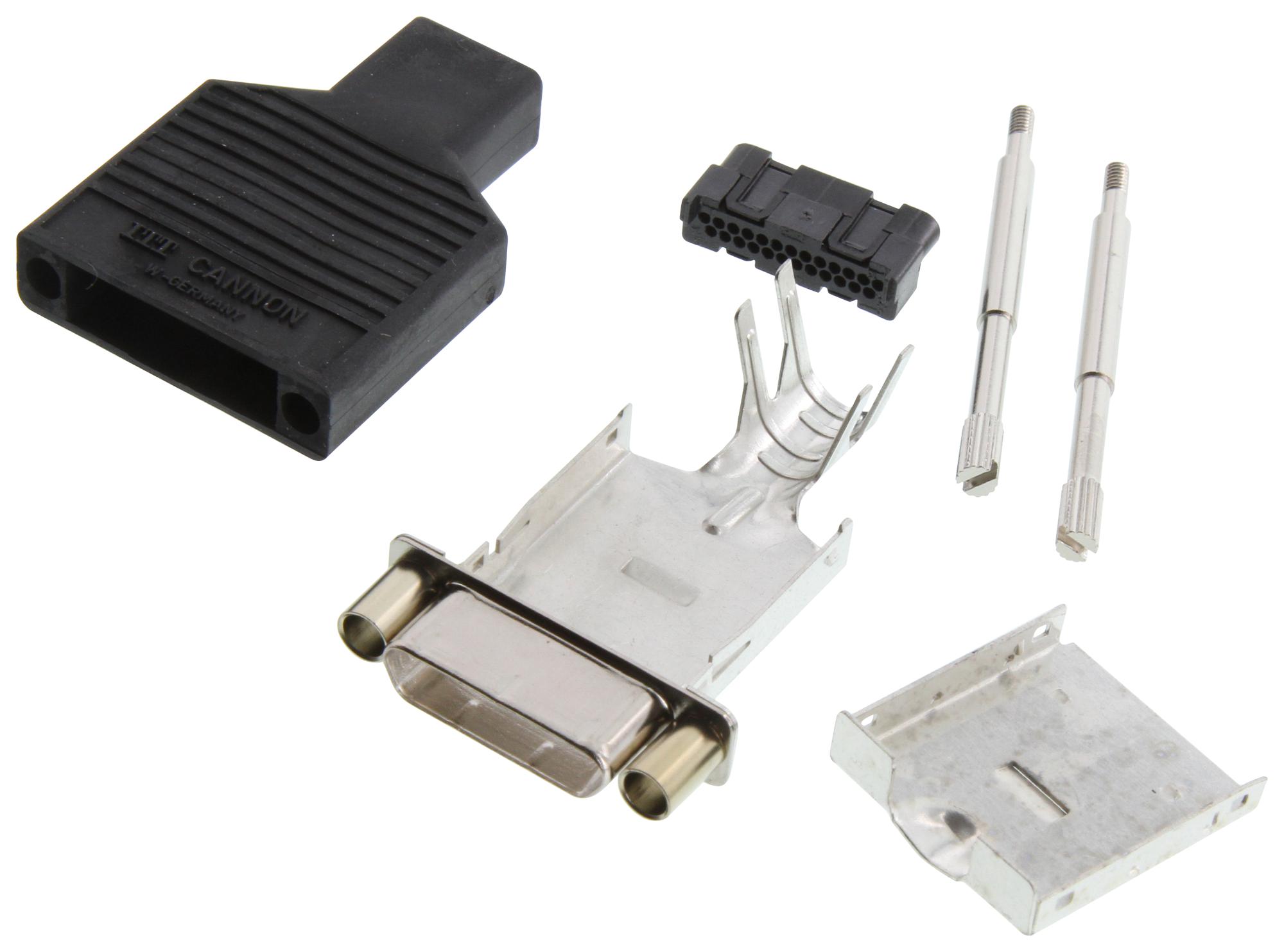

ITT CANNON MDSM25SCZ11VS1 Micro Socket Connector
The MDSM-25SC-Z11-VS1 is a high-quality micro socket connector designed for reliable electrical connections in industrial and electronic applications. Featuring 25 contacts with a crimp termination method, it offers durability with up to 500 mating cycles. This connector is constructed with thermoplastic insulation (UL94V-0), copper alloy contacts with gold over PdNi finish, and steel shells that are tinned and nickel-plated for enhanced corrosion resistance. Suitable for wire sizes AWG 26-28, it operates within a temperature range of -55°C to +125°C, making it ideal for demanding environments requiring stable, long-lasting connectivity.
ITT CANNON MDSM25SCZ11VS1 Micro Socket Connector Specifications:
- Number of contacts: 25
- Contact gender: Socket
- Termination type: Crimp (contacts ordered separately)
- Shell material: Steel, tinned and nickel plated
- Contact material: Copper alloy
- Contact finish: Gold over PdNi
- Contact termination area: Tin
- Wire size: AWG 26-28
- Insulation diameter: Max 0.95 mm
- Contact spacing: 4.27 mm
- Temperature range: -55°C to +125°C
- Current rating: 2.5 A at 25°C
- Test voltage: 350 Vrms
- Contact resistance: Max 20 mOhm
- Insulation resistance: Min 500 mOhm
- Packaging: 100 pieces
- Mating cycles: 500
- Mounting method: Screw, long, blank
- Insulator: Thermoplast, UL94V-0
- Contact guiding plate: PA, high temperature resistant
Buy the Cannon MDSM-25SC-Z11-VS1 – Reliable Micro Connector for Industrial Applications
Enhance your electronic assemblies with the Micro Socket Connector, featuring 25 contacts, durable gold over PdNi finish, and high current capacity. Perfect for industrial, automation, and electronic applications, it offers reliable crimp termination, a temperature range of -55°C to +125°C, and up to 500 mating cycles. Its steel shell with tinned finish ensures corrosion resistance, while the thermoplastic insulator adds durability. Conveniently packaged in sets of 100 pieces, this connector guarantees secure, long-lasting connections for your projects. Order online now for fast, reliable delivery.
Buy Cannon MDSM-25SC-Z11-VS1 micro connector now and experience unmatched reliability and performance in demanding electronic environments.
