ITT CANNON MDSSTS shielded connector
The MDSM series shielded connectors by Cannon are compact, high-reliability interfaces suitable for telecommunications and computer applications. Designed with copper alloy contacts finished with gold over PdNi, and insulated using thermoplast and high-temperature resistant PA shells, these connectors support wire sizes AWG 28 to 26. Available with crimp or solder pin terminations, they feature a contact spacing of 1.27 mm, and are rated for 2.5 A at 25°C with a maximum voltage of 350 V. Robust construction ensures durability and effective shielding for sensitive electronic equipment.
ITT CANNON MDSSTS shielded connector Specifications:
- Insulator: Thermoplast, UL 94V-0
- Shell material: Steel, tinned and nickel plated
- Contacts: Copper alloy with gold over PdNi finish
- Contact termination: Tinned (SnPb for PCB), crimp or solder options
- Wire size: AWG 28 - 26
- Contact spacing: 1.27 mm
- Temperature range: -55°C to +125°C
- Current rating: 2.5 A at 25°C
- Voltage rating: 350 Veff
- Contact resistance: 20 mΩ max (crimp), 35 mΩ max (PCB)
- Insulation resistance: 5000 MΩ min
- Shielding effectiveness up to 56 dB at 10 MHz, decreasing with frequency
- Available contact counts: 9, 15, 25
- Connection method: Crimp or PCB solder pins
- Mounting options: Screw, push-pull, or locking screw
- Cable: Tinned copper conductors AWG 26/7x0.160 mm or AWG 28/7x0.127 mm with shield braid
- Cable temp range: -40°C to +80°C
- Test voltage: 1000 Vrms
- Max outer diameter of cable: 0.9 mm
- Rated operating voltage: 300 Vrms
- Contacts: Gold over PdNi, tin-plated area

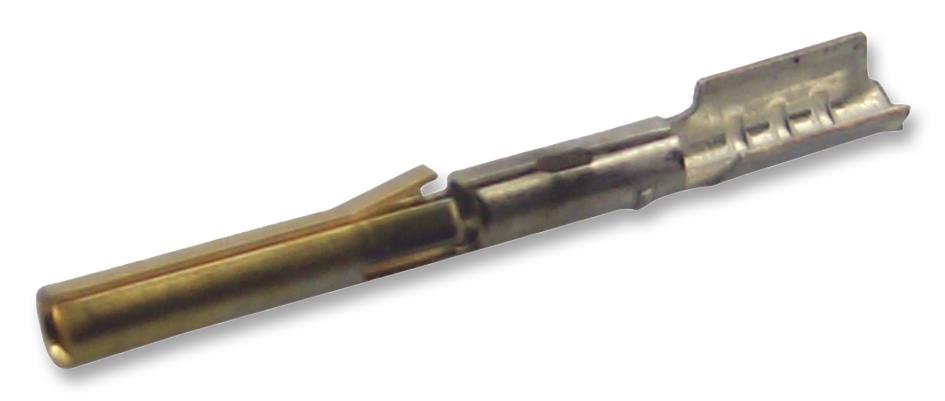

Buy the Cannon Series MDSM Shielded Connectors: MDSM-9PE
