ITT CANNON MS3101F2029S MIL-Circular Connector
The MS3101F20-29S from ITT Cannon is a durable MIL-DTL-5015 series circular connector with 17 solder cup contacts made from copper alloy with silver plating. Crafted from aluminum alloy with olive drab chromate over cadmium plating, it features a sealed design supporting IP67 water and dust resistance, ensuring reliable operation in harsh environments. Designed for military, aerospace, and industrial applications, it withstands -55°C to +125°C temperatures, offers high mating cycle durability, and features quick threaded coupling for secure connection. Its lightweight, environmentally resistant construction makes it ideal for demanding operational needs.
ITT CANNON MS3101F2029S MIL-Circular Connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate over cadmium plating
- Number of contacts: 17
- Contact Type: Solder Cup
- Contact Material: Copper alloy with silver plating
- Operating Voltage: Support as per standard applications
- Insulator Resistance: > 1000 MO according to VG95319 and VG95210 standards
- Test Voltage: 1600 Vrms
- Environmental Resistance: IP65/IP67 sealing, 500 hours salt spray resistance
- Mating Cycles: 500 minimum
- Temperature Range: -55°C to +125°C
- Shell Size: 20
- Shell Style: Threaded coupling, endbell with clamp and bushing
- Mating Force: 1.0 N per contact
- Coupling Torque: Max 9 Nm (closing), Min 0.7 Nm (opening)
- Contact Retention: 35 N
- Gage: See VG95234 catalog
- Wire Stripping: 6.2 mm
- Safety: Meets DIN VDE 410, IEC 60364-4-41 standards
- Certifications: IP65 as per DIN 40050, salt spray resistant
- Dimensions: Consistent with MIL-DTL-5015 standards

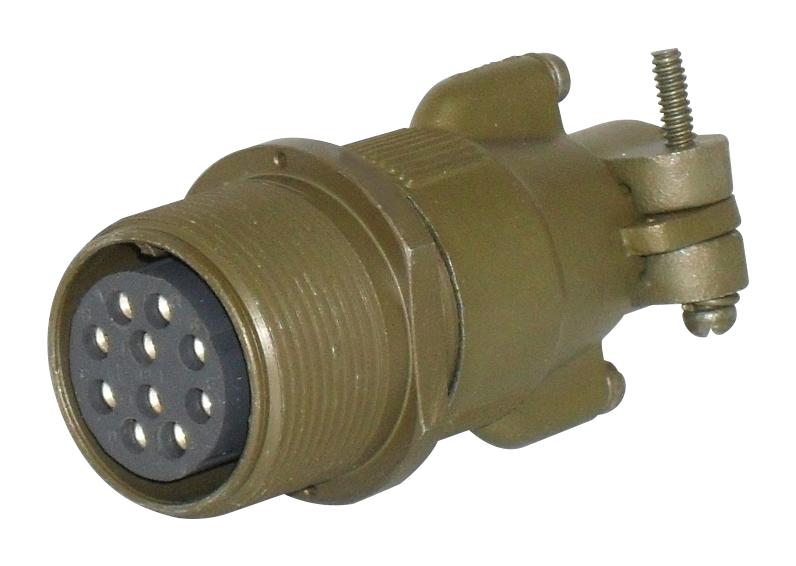

Buy the ITT Series MIL-C-5015 Circular Connector: MS3101F20-29S
Purchase the ITT Cannon MS3101F20-29S circular connector online today to ensure reliable, sealed electrical connections for military, aerospace, and industrial applications. Featuring 17 durable solder cup contacts, an aluminum alloy shell with protective plating, and IP67 water and dust resistance, this connector withstands extreme temperatures from -55°C to +125°C. Built for high durability with 500 mating cycles, it ensures long-lasting performance. Its quick threaded coupling system provides secure, tool-free installation, making it an ideal choice for demanding operational environments where reliability and environmental sealing are critical.
Get ITT Cannon MS3101F20-29S today—designed for secure, sealed, and high-performance connections in demanding environments.
Frequently Asked Questions
Where can I buy ITT CANNON MS3101F2029S?
You can click on the BUY or RFQ button to purchase MS3101F2029S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3101F2029S?
You can download the MS3101F2029S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3101F2029S?
ITT CANNON
