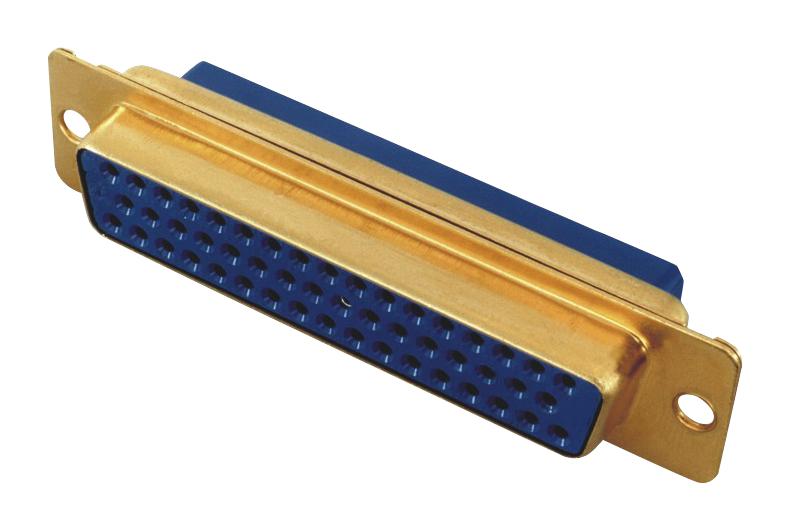

ITT CANNON M24308212Z Environmental Connector
The D*D Environmental Series connector offers high vibration and moisture resistance, suitable for aircraft, missile, and ground support applications. Featuring rugged aluminum shells with cadmium plating and yellow chromate, these connectors include solder and crimp contact types with gold plating for reliable conductivity. They meet MIL-C-24308 standards, with high dielectric performance, excellent corrosion, and moisture resistance, along with excellent shock and vibration endurance. These assemblies are equipped with dust caps and removable potting caps, ensuring environmental sealing and durability in demanding conditions.
ITT CANNON M24308212Z Environmental Connector Specifications:
- Shell Material: Aluminum, cadmium plated with yellow chromate coating
- Contacts: Copper alloy, gold plated .00002 (.0005) over nickel .00004 (.0010)
- Voltage Rating: AC 60 Hz, 25°C, varies by contact type
- Insulation Resistance: >5,000 megohms per MIL-C-24308
- Contact Voltage Drop: Max 2.67 millivolts per amp
- Contact Retention Force: 8 pounds minimum first cycle, 5 pounds after tenth cycle
- Environmental Resistance: Salt spray >50 hours, MIL-STD-202A, Method 101A
- Moisture Resistance: Exceeds MIL-STD-202A, Method 106
- Shock & Vibration: Exceeds MIL-STD-202A, Methods 213 & 204
- Air Leakage: Max 1 cu. in. per hour at 30 PSI differential
- Altitude Rating: Up to 70,000 feet
- Assembly Features: Dust caps, potting caps, rear insertion, rear-release retention
- Dimensions: various sizes, compatible with MIL-DTL-24308
Buy the Buy Environmental Connector Part Number M24308212Z Online
Order the environmentally resistant connector M24308212Z online today and ensure your aerospace or military application benefits from superior vibration, moisture, and corrosion resistance. Designed with a rugged aluminum shell and gold-plated contacts, this connector provides high durability and reliable electrical connectivity. Each assembly includes secure dust caps and removable potting caps, safeguarding against environmental elements. Perfect for aircraft, missile systems, and ground support equipment, this connector guarantees performance under demanding conditions. Purchase online to enhance your project with proven, top-quality aerospace-grade interconnects.
Buy Environmental Connector M24308212Z now and experience unmatched reliability and performance in harsh environments.
