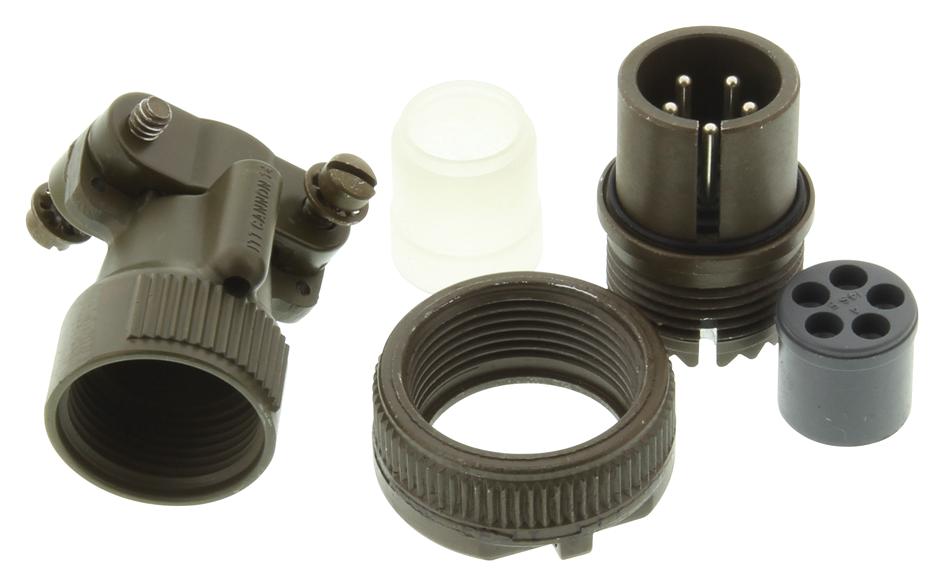

ITT CANNON MS3106F14S5P Circular Connector
The MS3106F14S-5P from ITT Cannon is a MIL-DTL-5015 series straight circular connector with five solder cup contacts. Constructed from aluminum alloy with olive drab chromate over cadmium plating, it delivers excellent moisture and corrosion resistance. Designed for medium to heavy-duty use, it supports up to 500 mating cycles and features environmental sealing with IP65/IP67 ratings. Operating over -55°C to +125°C, it offers quick threaded coupling, high contact durability, and is ideal for defense, aerospace, industrial, and military applications requiring robust and reliable connections.
ITT CANNON MS3106F14S5P Circular Connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate over cadmium plating
- Number of Contacts: 5 solder cup contacts (Size 16S)
- Contact Material: Copper alloy with silver plating
- Operating Temperature Range: -55°C to +125°C
- Ingress Protection: IP65/IP67
- Mating Cycles: 500
- Test Voltage: 1050 Vrms
- Insulator Resistance: > 1000 MΩ
- Salt Spray Resistance: 500 hours
- Coupling Torque: Closing 3.6 Nm max, Opening 0.35 Nm min
- Wire Stripping Diameter: 6.2 mm
- Shell Size: 148
- Contact Arrangement: 148-5
- Endbell Style: With cable clamp
- Environmental Resistance: Corrosion-resistant, moisture-proof
Buy the Buy ITT Cannon Circular Connector Part Number MS3106F14S5P Online
Purchase the ITT Cannon Circular Connector designed for demanding industrial, aerospace, and defense applications. Featuring high corrosion resistance with aluminum alloy shell, this connector supports 500 mating cycles, IP65/IP67 sealing, and operates reliably from -55°C to +125°C. Its robust construction ensures long-lasting performance, making it ideal for harsh environment use. Easily assemble with quick threaded coupling, securely connect critical systems, and ensure environmental protection. Buy online today for a reliable, durable solution crafted for precision and longevity in tough conditions.
Get ITT Cannon MS3106F14S5P today—built for high durability and reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy ITT CANNON MS3106F14S5P?
You can click on the BUY or RFQ button to purchase MS3106F14S5P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3106F14S5P?
You can download the MS3106F14S5P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3106F14S5P?
ITT CANNON
