ITT CANNON MS3106F184S Circular connector
This circular connector features a straight shell style with a threaded coupling, designed for durability and reliable connections in various industrial applications. It includes a socket gender with 4 solder cup contacts, plated with hard silver for excellent conductivity. The shell size 18 and contact arrangement 18-4 make it suitable for high-performance environments. Rated for voltages above 50V in compliance with DIN standards, it offers IP65 protection, salt spray resistance for 500 hours, and can withstand 500 mating cycles. Constructed with a corrosion-resistant aluminium alloy shell and neoprene insulators, this connector ensures long-lasting performance and secure connections.
ITT CANNON MS3106F184S Circular connector Specifications:
- Shell Style: Straight shell with threaded coupling
- Shell Size: 18
- Contact Arrangement: 18-4
- Number of Contacts: 4, size 16
- Contact Type: Solder Cup
- Contact Plating: Hard silver
- Operating Voltage: Greater than 50V (compliant with DIN VDE 410, IEC 60364-4-41)
- Insulator Resistance: >1000 MO per VG95319 and VG95210 standards
- Test Voltage: 2500 Vrms
- Air and Creepage Paths: 2.8 mm minimum
- Ambient Temperature: -55°C to +125°C
- Ingress Protection: IP65 according to DIN 40050
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500 minimum
- Coupling Torque: Closing max 8 Nm, opening min 0.58 Nm
- Shell Material: Aluminium alloy with olive drab chromate coating over cadmium plating
- Insulator Material: Neoprene
- Contact Material: Copper alloy
- Wire Stripping: 6.2 mm

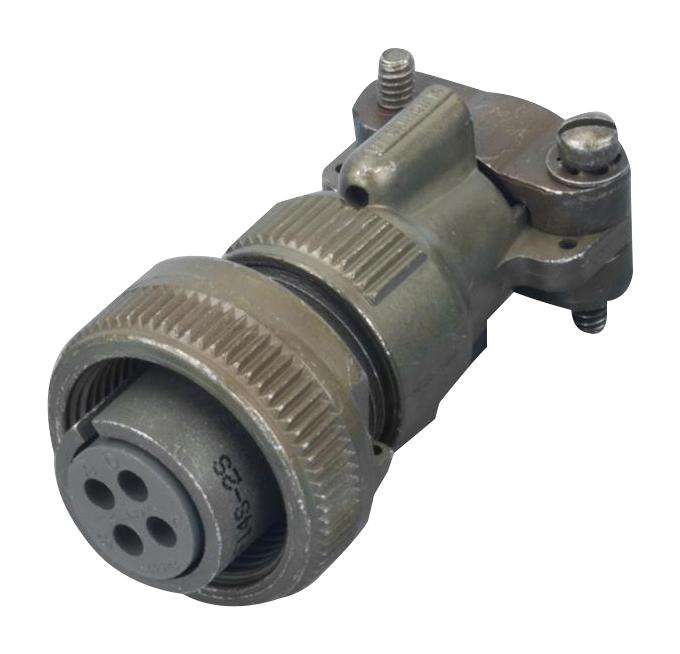

Buy the Buy Cannon Circular Connector Part Number MS3106F18-4S Online
Discover the convenience of purchasing the Cannon circular connector MS3106F18-4S online. Crafted with durable materials like aluminium alloy and neoprene, it provides IP65 protection and salt spray resistance for demanding industrial environments. This connector features four solder cup contacts with hard silver plating, ensuring excellent conductivity, and is rated for voltages above 50V in accordance with DIN standards. Easy to install with a torque of 8 Nm for secure mating, it is suitable for critical applications requiring longevity and dependable performance.
Order your Cannon Series MS3106F18-4S circular connector today and enhance your industrial projects with reliable, corrosion-resistant connections.
Frequently Asked Questions
Where can I buy ITT CANNON MS3106F184S?
You can click on the BUY or RFQ button to purchase MS3106F184S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3106F184S?
You can download the MS3106F184S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3106F184S?
ITT CANNON
