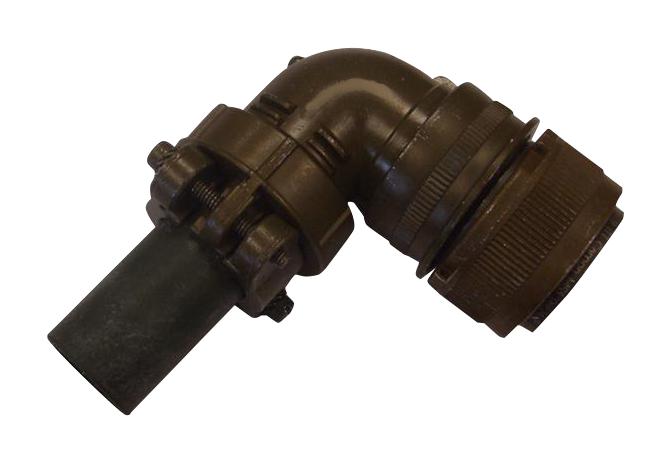

ITT CANNON MS3108E2029P Circular Connector
The MS3108E20-29P is a rugged circular connector designed for reliable electrical connections in industrial and military applications. Featuring a shell size of 20 and a contact arrangement of 20-29 with 17 solder cup contacts, it offers high durability, IP65 protection, and salt spray resistance for harsh environments. Constructed from aluminum alloy with olive drab chromate coating and copper alloy contacts, it supports operating temperatures from -55°C to +125°C and withstands 500 mating cycles. Suitable for applications requiring robust, weatherproof connections with secure coupling torque of up to 9 Nm.
ITT CANNON MS3108E2029P Circular Connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate coating
- Contact Material: Copper alloy
- Contact Type: Solder cup
- Number of Contacts: 17
- Contact Plating: Hard silver
- Shell Size: 20
- Contact Arrangement: 20-29
- Operating Voltage: Greater than 50V
- Test Voltage: 1600 Vrms
- Insulator Resistance: > 1000 MO
- Insulator and Grommet Material: Neoprene
- Temperature Range: -55°C to +125°C
- Salt Spray Resistance: 500 hours
- Ingress Protection: IP65
- Mating Cycles: 500
- Coupling Torque: Closing 9 Nm max, Opening 0.7 Nm min
- Wire Stripping: 6.2 mm
- Air and Creepage Paths: Minimum 1.4 mm
Buy the Buy Cannon Circular Connectivity Part Number MS3108E20-29P Online
Secure your industrial and military electrical connections by purchasing the Cannon MS3108E20-29P online. This durable circular connector features 17 solder cup contacts, robust aluminum shell with protective coating, and supports up to 500 mating cycles. With IP65 weatherproofing, salt spray resistance, and a broad temperature range from -55°C to +125°C, it is ideal for harsh conditions. Easy to install with a locking torque of 9 Nm, ensuring a stable, long-lasting connection for critical applications. Buy now for dependable safety and performance.
Buy Cannon MS3108E20-29P now and experience unmatched reliability and performance in demanding environments.
Frequently Asked Questions
Where can I buy ITT CANNON MS3108E2029P?
You can click on the BUY or RFQ button to purchase MS3108E2029P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3108E2029P?
You can download the MS3108E2029P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3108E2029P?
ITT CANNON
