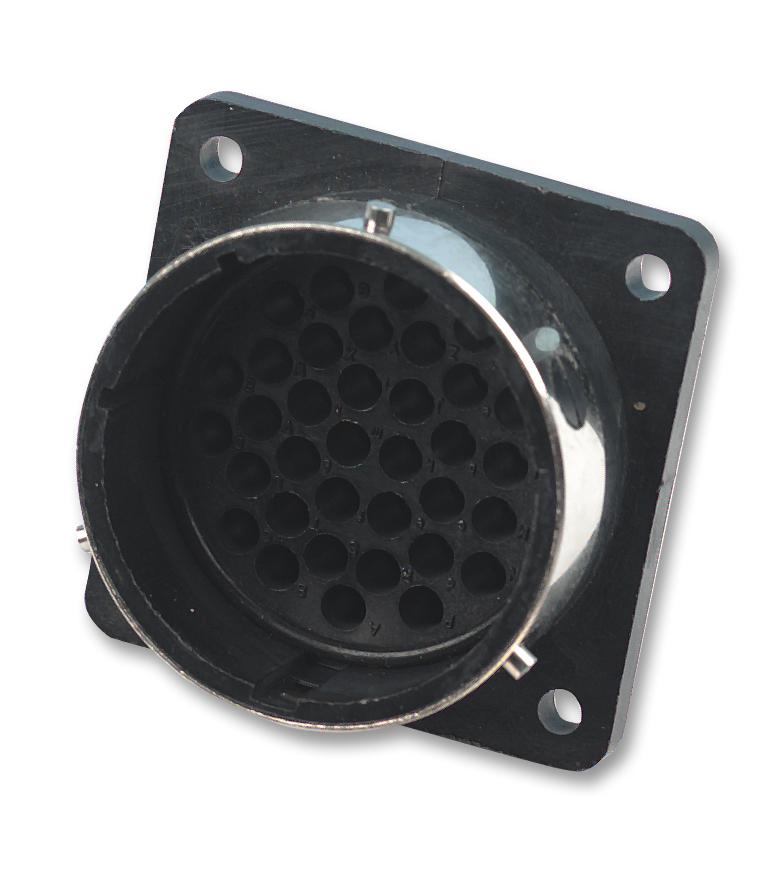

ITT CANNON TR1823RMS1NB Industrial Receptacle Connector
The Cannon Trident Series TR1823RMS1NB is a high-quality receptacle connector designed for industrial applications. Made from durable black nylon, it features a nickel-plated copper alloy coupling ring, stainless steel bayonet pins, and supports up to 380 Vac rms for size 1807. With a rating of up to 13A and an operating temperature from -55°C to +105°C, this connector ensures reliable performance and sealing up to IP65. Its robust construction makes it ideal for harsh environments requiring secure, durable connections.
ITT CANNON TR1823RMS1NB Industrial Receptacle Connector Specifications:
- Shell Size: 18
- Number of Contacts: 23
- Contact Type: Accepts Male Contacts
- Material: Nylon
- Connector Body: Black Nylon
- Coupling Ring: Nickel Plated Copper Alloy
- Bayonet Pins: Stainless Steel
- Bayonet Pins Support Band: Nickel Plated Copper Alloy
- Rated Voltage: Up to 250 V ac rms, up to 380 Vac rms (Size 1807 only)
- Contact Current Rating: Up to 13A
- Operating Temperature: -55°C to +105°C
- Insulation Resistance: 5000 Megaohms at 500 V de
- Durability: Up to 500 Mating Cycles
- Sealing: Up to IP65
- Flammability Rating: UL94-VO
Buy the Cannon Series TR Trident Receptacle Connector: TR1823RMS1NB
Secure your industrial setups with the Cannon Trident Series TR1823RMS1NB receptacle connector. Featuring IP65 sealing, high durability, and a robust nylon body, it withstands harsh conditions and ensures reliable connections. Suitable for voltages up to 380 Vac rms in size 1807, rated up to 13A, and supporting up to 500 mating cycles. The corrosion-resistant nickel-plated copper alloy and stainless steel components enhance longevity, making it an ideal choice for demanding industrial applications requiring safety and performance.
Buy Cannon TR1823RMS1NB now and experience unmatched durability and reliable waterproof connections for industrial environments.
