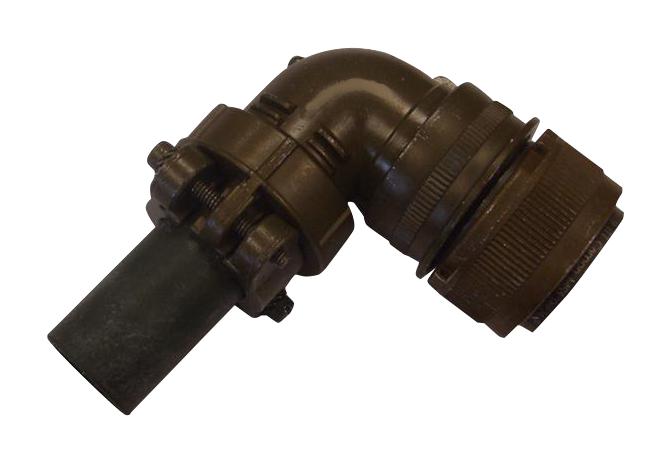

ITT CANNON MS3108E2428S circular electrical connector
The product is a circular electrical connector designed for robust and secure connections in industrial applications. It features a shell size 24, 24-28 contact arrangement with solder cup contacts plated in hard silver. Suitable for environments requiring IP65 protection, it withstands salt spray resistance for 500 hours and endures up to 500 mating cycles. Constructed with an aluminum alloy shell with olive drab chromate coating, the connector supports operating temperatures from -55°C to +125°C and has a maximum coupling torque of 14 Nm for secure engagement, making it ideal for demanding industrial use.
ITT CANNON MS3108E2428S circular electrical connector Specifications:
- Shell Size: 24
- Contact Arrangement: 24-28
- Number of contacts: 24
- Contact Type: Solder Cup
- Contact Plating: Hard silver
- Shell Material: Aluminium alloy
- Shell Coating: Olive drab chromate over cadmium
- Insulator Material: Neoprene
- Wire Stripping Length: 6.2 mm
- Operating Temperature: -55°C to +125°C
- Ingress Protection: IP65 according to DIN 40 050
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500 min
- Coupling Torque: Closing 14 Nm max, Opening 0.8 Nm min
- Test Voltage: 1050 Vrms
- Contact Resistance: Aan
- Insulator Resistance: >1000 MΩ
- Air and Creepage Paths: 0.7 mm
Buy the Buy Cannon Circular Connector Part Number MS3108E24-28S Online
Purchase the Cannon circular electrical connector MS3108E24-28S online for reliable industrial connections. This connector features a robust aluminum shell, IP65 rating for dust and water resistance, and hard silver-plated contacts ensuring long-term conductivity. Its salt spray resistance, high mating cycle endurance, and temperature tolerance from -55°C to +125°C make it perfect for demanding environments. Designed with neoprene insulators, solder cup contacts, and secure coupling torque, this connector offers a durable and secure solution for industrial automation, machinery, and control panels.
Get Cannon MS3108E24-28S today—designed for rugged industrial environments with IP65 protection and high mating cycle durability.
Frequently Asked Questions
Where can I buy ITT CANNON MS3108E2428S?
You can click on the BUY or RFQ button to purchase MS3108E2428S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3108E2428S?
You can download the MS3108E2428S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3108E2428S?
ITT CANNON
