ITT CANNON MS3108R184P Circular Connector
The circular connector features a threaded coupling shell style plug with a 90° endbell style, designed for robust and reliable connections in demanding environments. With 4 solder cup contacts, hard silver plating, and an aluminium alloy shell with olive drab chromate coating, it ensures durability. Rated for -55°C to +125°C, IP65 weather resistance, salt spray resistance for 500 hours, and capable of withstanding 500 mating cycles, this connector is ideal for industrial, automation, and military applications requiring high performance and environmental protection.
ITT CANNON MS3108R184P Circular Connector Specifications:
- Shell Material: Aluminium alloy with olive drab chromate coating
- Shell Size: 18
- Contact Arrangement: 18-4
- Number of Contacts: 4
- Contact Type: Solder Cup
- Contact Plating: Hard silver
- Contact Resistance: Aan
- Operating Voltage: >50V (must comply with DIN VDE 410 if higher)
- Insulator Resistance: >1000 MO
- Test Voltage: 2500 Vrms
- Air and Creepage Path: 2.8 mm
- Ambient Temperature: -55°C to +125°C
- Safety Rating: IP65
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500
- Coupling Torque: Closing max 8 Nm, opening min 0.58 Nm
- Wire Stripping: 6.2 mm
- Gasket Material: Neoprene
- Insulator Material: Neoprene
- Contact Material: Copper alloy
- Shielding: No

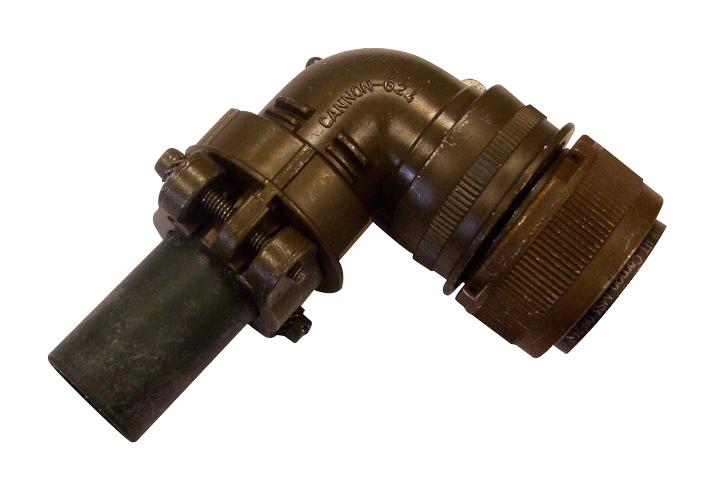

Buy the Buy Cannon Circular Connector Part Number MS3108R18-4P Online
Discover the rugged and reliable circular connector designed for heavy-duty industrial and military environments. Featuring a threaded coupling shell, 4 solder cup contacts with hard silver plating, and an aluminium alloy shell with olive drab chromate coating, it ensures durability and corrosion resistance. Rated for -55°C to +125°C and IP65 weatherproof, this connector withstands salt spray for 500 hours and 500 mating cycles, making it ideal for demanding applications requiring high performance and environmental protection.
Buy Cannon MS3108R18-4P now and experience unmatched reliability and high environmental resistance for industrial and military applications.
Frequently Asked Questions
Where can I buy ITT CANNON MS3108R184P?
You can click on the BUY or RFQ button to purchase MS3108R184P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3108R184P?
You can download the MS3108R184P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3108R184P?
ITT CANNON
