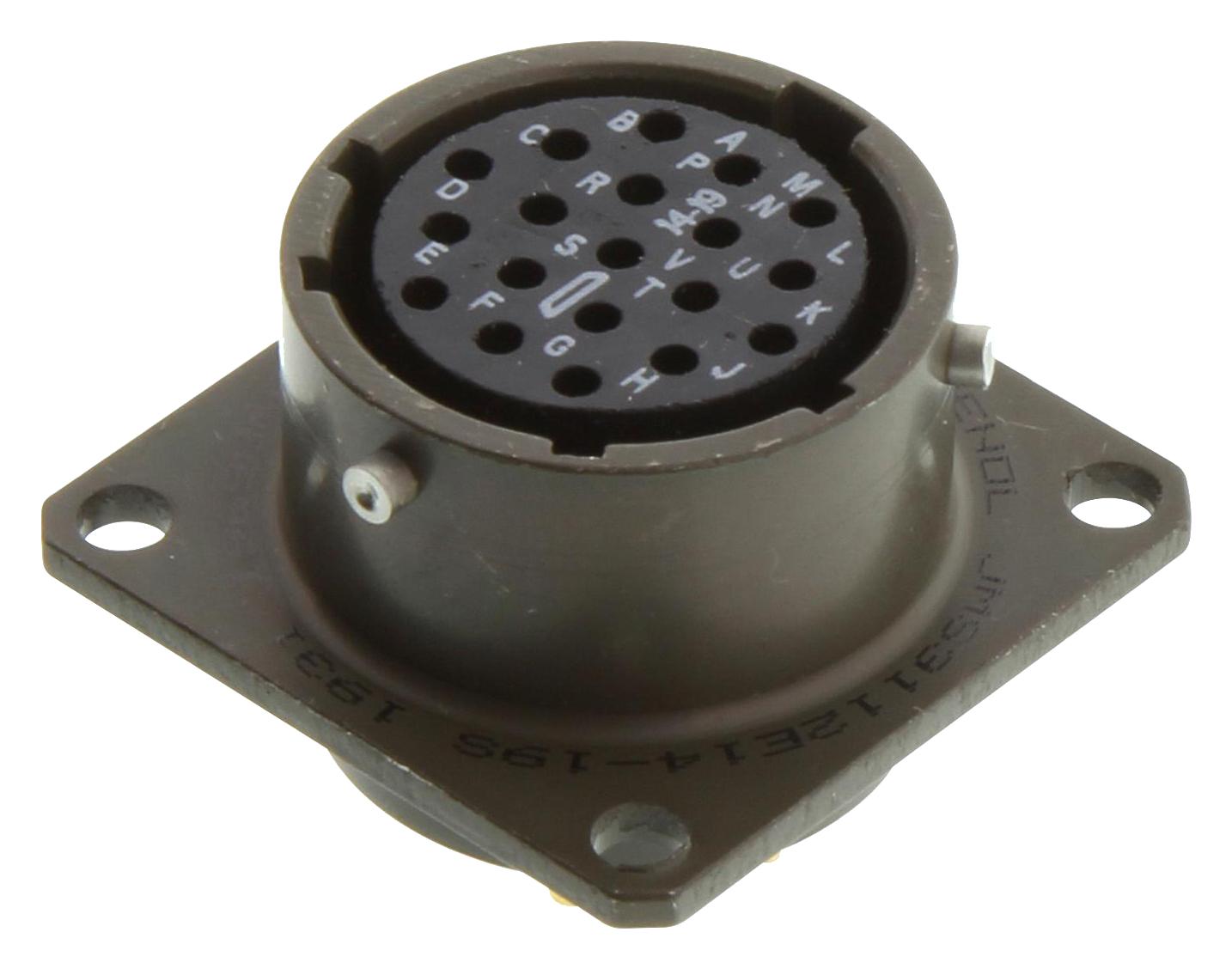

ITT CANNON MS3112E1419S MIL-DTL-26482 Receptacle
The MS3112E14-19S from ITT Cannon is a MIL-DTL-26482 Series I box mount receptacle with 19 contacts. It features a rugged aluminum alloy body with olive drab chromate over cadmium plating, and copper alloy solder socket contacts with gold plating for reliable electrical performance. The connector is designed for high durability, capable of withstanding extreme shock, vibration, and harsh environments. It offers intermatability with MIL-C-26482 and VG95328 connectors, with self-levelling three-point bayonet coupling for quick and secure mating. Precise alignment is achieved through five keyways. The connector's environmental sealing and insulation resistance of 5000 MΩ ensure dependable operation in temperatures from -55°C to +125°C. It supports up to 500 mating cycles at an operating voltage of 1000VAC and includes resilient polychlorprene insulators and grommets for added durability.
ITT CANNON MS3112E1419S MIL-DTL-26482 Receptacle Specifications:
- Shell Material: Aluminum alloy with olive drab chromate over cadmium plating
- Contacts: Copper alloy solder socket with gold plating
- Number of Contacts: 19
- Operating Voltage: 1000VAC
- Insulation Resistance: 5000 MΩ
- Temperature Range: -55°C to +125°C
- Durability: Supports up to 500 mating cycles
- Seal: Environmental sealing with resilient polychlorprene insulators and grommets
- Coupling: Self-levelling three-point bayonet system
- Keyways: Five for precise alignment
- Interchangeability: Compatible with MIL-C-26482 and VG95328 standards
Buy the Amphenol Series 26482 MIL-DTL-26482 Series 1 Receptacle: MS3112E1419S
Purchase the Amphenol MIL-DTL-26482 Series 1 MS3112E1419S receptacle online today and enjoy quick, secure shipping. This rugged, high-durability connector with 19 contacts is ideal for military, aerospace, and industrial applications. Its aluminum body provides excellent resistance to shock, vibration, and extreme temperatures, while gold-plated contacts ensure optimal electrical performance. The bayonet coupling system offers fast mating and secure connection, with environmental sealing for harsh conditions. Trust Amphenol’s quality to keep your projects running reliably worldwide.
Order your Amphenol Series 26482 MS3112E1419S bulk connector today and ensure reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy ITT CANNON MS3112E1419S?
You can click on the BUY or RFQ button to purchase MS3112E1419S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3112E1419S?
You can download the MS3112E1419S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3112E1419S?
ITT CANNON
