ITT CANNON MS3112E83P MIL-DTL-26482 Connector
The MS3112E8-3P from ITT Cannon is a MIL-DTL-26482 Series I box mount receptacle with three contacts, ideal for demanding environments. Constructed with an aluminum alloy shell finished in olive drab chromate over cadmium, it provides excellent corrosion resistance. The connector features copper alloy, gold-plated solder cup contacts, and resilient polychloroprene insulators and grommets for environmental sealing. It supports operating temperatures from -55°C to +125°C, withstands at least 500 mating cycles, and is rated for up to 1000VAC. Designed for quick, reliable connections with a bayonet coupling system, it ensures high performance in vibration, shock, and water exposure.
ITT CANNON MS3112E83P MIL-DTL-26482 Connector Specifications:
- Shell Material: Aluminium alloy with olive drab chromate over cadmium plating
- Contact Arrangement: 83
- Number of contacts: 3 contacts, size 20
- Contact Type: Solder cup, gold plated copper alloy
- Operating Temperature: -55°C to +125°C
- Water Tightness: IP67 according to DIN 40 050 (0.2 bar pressure for 48 hrs)
- Mating Cycles: Minimum 500
- Vibration Resistance: 200 m/s² at 10 to 2000 Hz
- Insulation Resistance: 5000 MΩ at 25°C
- Test Voltage: 1500 V rms
- Operating Voltage: 1000 VAC
- Waterproofing: Environmentally sealed with polychloroprene insulators and grommets
- Connection: Self-leveling, three-point bayonet coupling with five keyways
- Certifications: VG95319, VG95210
- Durability: Designed for harsh environments, shock, vibration, and corrosion resistance

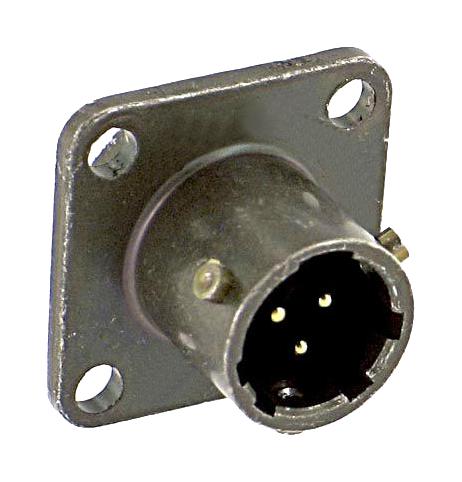

Buy the Buy ITT Cannon Circular Part Number MS3112E8-3P Online
Purchase the ITT Cannon MIL-DTL-26482 Series I connector MS3112E8-3P online today and enjoy high-performance electrical connections designed for harsh environments. Featuring a durable aluminum alloy shell with corrosion-resistant coating, gold-plated copper contacts, and reliable polychloroprene insulators, this connector ensures excellent environmental sealing, vibration, and shock resistance. Its quick bayonet coupling simplifies mating and unmating procedures, making it ideal for aerospace, military, and industrial applications. Secure your critical connections with this rugged and dependable connector—order now for fast delivery and technical support.
Buy ITT Cannon MS3112E8-3P now and experience unmatched reliability, quick coupling, and high environmental sealing for demanding applications.
Frequently Asked Questions
Where can I buy ITT CANNON MS3112E83P?
You can click on the BUY or RFQ button to purchase MS3112E83P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3112E83P?
You can download the MS3112E83P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3112E83P?
ITT CANNON
