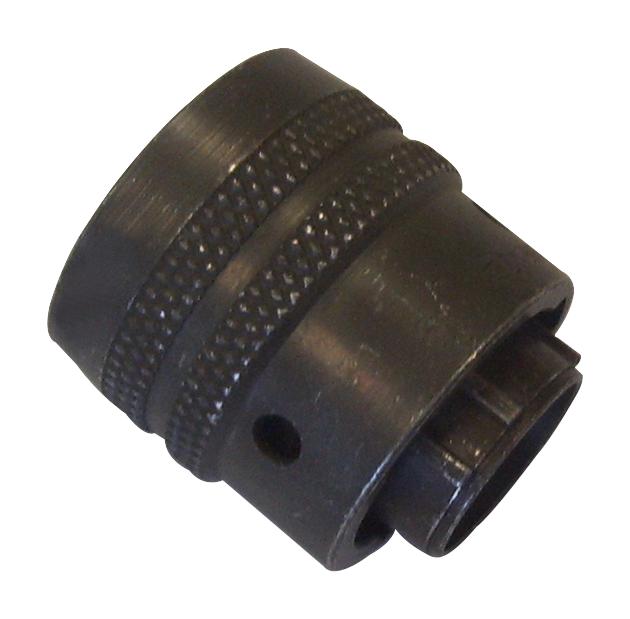

ITT CANNON MS3116E84P MIL-DTL-26482 Connector
The MS3116E8-4P connector from ITT Cannon is a MIL-DTL-26482 Series I straight plug featuring four contacts. This connector offers a robust design with a high contact density and environmental sealing, making it suitable for harsh environments. It is intermateable, interchangeable with MIL-C-26482 and VG95328 standards, and includes a self-leveling three-point bayonet coupling for quick and reliable mating and unmating. The connector ensures precise alignment with five keyways and is constructed with an aluminum alloy body finished with olive drab chromate over cadmium plating. Its copper alloy solder pin contacts are gold-plated for enhanced durability. The device withstands extreme conditions with an operating temperature range from -55°C to +125°C, an insulation resistance of 5000 MΩ at 25°C, and is rated for 500 mating cycles with an operating voltage of 1000 VAC. It features resilient polychlorprene insulators and grommets, providing long-lasting performance in demanding applications.
ITT CANNON MS3116E84P MIL-DTL-26482 Connector Specifications:
- Number of contacts: 4
- Shell material: Aluminum alloy with olive drab chromate over cadmium plating
- Contact material: Copper alloy, gold-plated
- Operating temperature: -55°C to +125°C
- Insulation resistance: 5000 MΩ at 25°C
- Rated voltage: 1000 VAC
- Durability: 500 mating cycles
- Environmental sealing: Yes
- Coupling type: Three-point bayonet with five keyways
- Standards compliance: MIL-DTL-26482, VG95328
- Contact type: Solder pins
- Ingress protection: Environmentally sealed
- Additional features: Precise alignment, high contact density
Buy the Buy Amphenol MIL-DTL-26482 Series 1 Connector Part Number MS3116E8-4P Online
Purchase the Amphenol MIL-DTL-26482 Series 1 straight plug with four contacts online today for a high-performance, environmentally sealed connector suitable for military and industrial applications. Featuring a robust aluminum alloy body, gold-plated copper alloy contacts, and a secure bayonet coupling system, this connector ensures quick, reliable mating in harsh environments. Rated for 500 mating cycles and operating from -55°C to +125°C, it’s ideal for aerospace, military, and rugged industrial settings. Order now for fast delivery and proven durability in demanding conditions.
Buy Amphenol MS3116E8-4P now and experience unmatched reliability and performance in demanding high-vibration applications.
Frequently Asked Questions
Where can I buy ITT CANNON MS3116E84P?
You can click on the BUY or RFQ button to purchase MS3116E84P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3116E84P?
You can download the MS3116E84P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3116E84P?
ITT CANNON
