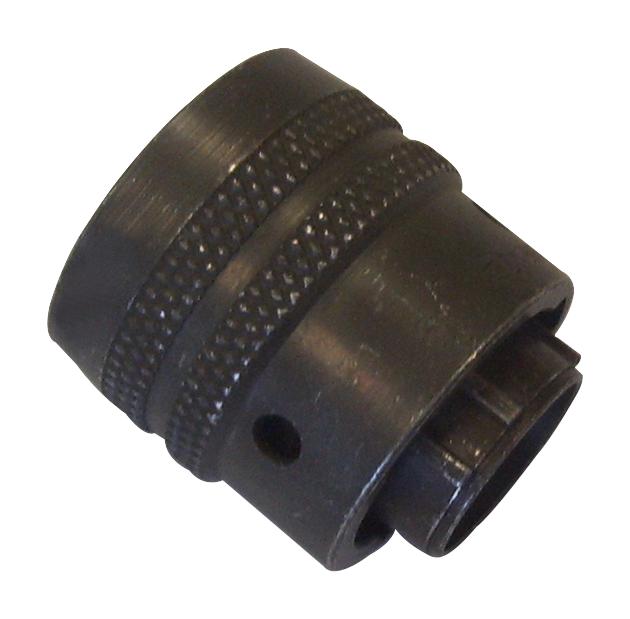

ITT CANNON MS3116F1412P MIL-DTL-26482 Connector
The MS3116F14-12P from ITT Cannon is a MIL-DTL-26482 Series I straight plug connector featuring 12 contacts. Designed for durability, it is environmentally sealed, capable of withstanding harsh conditions including extreme shock, vibration, and exposure. The connector offers quick mating with a self-leveling, three-point bayonet coupling system, ensuring reliable and secure connections. It incorporates precise alignment with five keyways and is compatible, interchangeable, and intermountable with MIL-C-26482 and VG95328 connectors. Made from aluminum alloy with olive drab chromate over cadmium plating, it includes copper alloy solder pin contacts with gold plating, and features a resilient polychlorprene insulator and grommet. Operating in temperatures from -55°C to +125°C, it provides an insulation resistance of 5000 MΩ at 25°C, supports up to 500 mating cycles, and operates at a voltage of 1000VAC.
ITT CANNON MS3116F1412P MIL-DTL-26482 Connector Specifications:
- Material: Aluminum alloy with olive drab chromate over cadmium plating
- Contacts: Copper alloy solder pin, gold plated
- Insulator: Resilient polychlorprene
- Number of contacts: 12
- Operating Temperature Range: -55°C to +125°C
- Voltage Rating: 1000VAC
- Insulation Resistance: 5000 MΩ at 25°C
- Shock Resistance: Support severe shock conditions
- Vibration Resistance: Support extreme vibration environments
- Durability: Up to 500 mating cycles
- Coupling System: Three-point bayonet for quick and secure connection
Buy the ITTS Cannon Series MIL-DTL-26482 Straight Plug: MS3116F14-12P
Purchase the MIL-DTL-26482 Series I straight plug connector MS3116F14-12P online today for advanced environmental resistance, quick bayonet coupling, and high durability. Designed for harsh conditions, it supports up to 500 mating cycles, operates at 1000VAC with temperature ratings from -55°C to +125°C, and features corrosion-resistant aluminum alloy construction. Perfect for aerospace, military, and industrial applications where reliable connectivity is critical. Secure your order now to benefit from swift delivery and high-performance standards.
Order your ITTS Cannon Series MIL-DTL-26482 Straight Plug MS3116F14-12P today and ensure reliable, durable connections for harsh environmental conditions.
