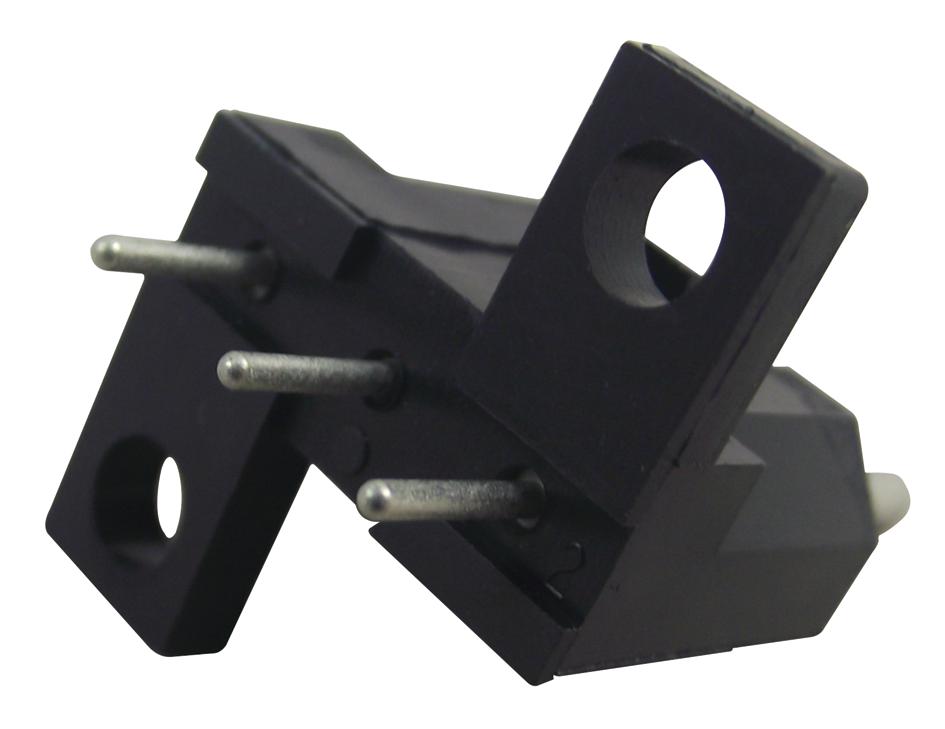

ITT CANNON TST03RB01T Rectangular Connector System
The TST03RB01T is a compact, rectangular, snap-together connector system designed for easy assembly and removal in circuit board and internal wiring applications. Suitable for circuits up to 13 A and 250 V ac, it features integrally molded latches, polarization, and recognizes UL and CSA standards. Compatible with stamped or machined contacts, it offers reliable insulation resistance of 5000 MΩ at 500 V, and a latching force of 150 N. Made of black UL 94V-0 nylon, it ensures durability and safety in electronic connections.
ITT CANNON TST03RB01T Rectangular Connector System Specifications:
- Operating Voltage: 250 Vac rms
- Contact Current Rating: Up to 13 A
- Temperature Range: -55°C to 105°C (Free Plug and Panel Receptacles), -40°C to 105°C (PCB Mounted Receptacles)
- Insulation Resistance: 5000 MΩ at 500 V dc
- Connector Latching Force: 150 N min. with latches engaged
- Test Voltage: 2000 V ac for 60 seconds
- Panel Retention Force: 500 N min.
- Material: Black Nylon UL 94V-0
- Dimensions: Max length 19.00 mm (0.748 in), width 17.00 mm (0.669 in), height varies per model
- Accepts formed or machined contacts; compatible with copper alloy contact materials
- Includes integrally molded latches, polarization, and optional discriminating pins
Buy the Buy ITT Industries Connector Part Number TST03RB01T Online
Experience seamless and reliable electronic connections by purchasing the ITT Industries rectangular connector with part number TST03RB01T online. Designed for easy snap-together assembly, it offers excellent durability, polarization, and UL/CSA recognition, making it an ideal choice for circuit board connections, internal wiring, and equipment assembly. With a maximum current capacity of 13 A, it ensures safe and efficient operation in various electrical environments, streamlining your manufacturing process and ensuring secure electrical contacts.
Buy ITT Industries TST03RB01T now and experience unmatched reliability and performance in your electronic assembly and connection needs.
