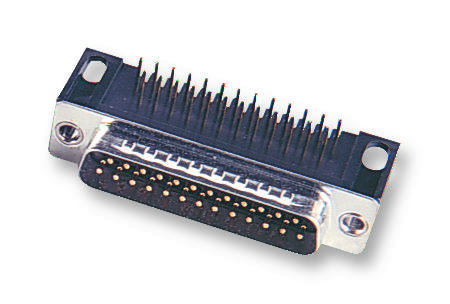

ITT CANNON ZDB25P1AKN146 D Sub Connector
This low-cost D Sub connector features 25 pin contacts suitable for various electronic applications. Made with a steel shell finished in tin, it offers high durability with a dielectric withstand voltage of 1000 VAC at sea level. The connector supports wire gauges from AWG 20 to 28, with a current rating of 5 A. It is designed for 50 mating cycles and includes right-angled solder termination with a plastic bracket and screw lock for secure mounting. Operating within -55°C to +105°C, it ensures reliable performance in demanding environments.
ITT CANNON ZDB25P1AKN146 D Sub Connector Specifications:
- Number of contacts: 25
- Contact gender: Pin
- Contact material: Copper alloy
- Contact finish: Gold flash
- Contact type: Stamped
- Contact resistance: 20 milli Ohm max
- Dielectric withstanding voltage: 1000 VAC at sea level
- Current rating: 5 A maximum
- Wire gauge range: AWG 20-28
- Operating temperature: -55°C to +105°C
- Shell material: Steel
- Shell finish: Tin
- Insulator material: Glass filled thermoplastic, UL 94V-0
- Mounting method: Plastic bracket with screwlock 4-40
- PCB mounting: Pushfit with 3.0 mm hold diameter
- Salt spray test: 12 hours
- Mating cycles: 50
Buy the Buy Cannon D Sub Part Number ZDB25P1AKN146 Online
Purchase the Cannon D Sub Connector ZDB25P1AKN146 online today for high-quality, dependable electronic connections. Featuring 25 gold flash contacts, a steel shell with tin finish, and a versatile PCB mounting design, it combines durability with easy installation. Ideal for various electronic projects, this connector supports wire gauges from AWG 20 to 28, operates within -55°C to +105°C, and withstands 50 mating cycles. Enhance your electronic systems with this cost-effective and reliable connector for demanding applications.
Get Cannon ZDB25P1AKN146 today—built for reliable electronic connections and long-lasting durability.
Frequently Asked Questions
Where can I buy ITT CANNON ZDB25P1AKN146?
You can click on the BUY or RFQ button to purchase ZDB25P1AKN146 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part ZDB25P1AKN146?
You can download the ZDB25P1AKN146 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of ZDB25P1AKN146?
ITT CANNON
