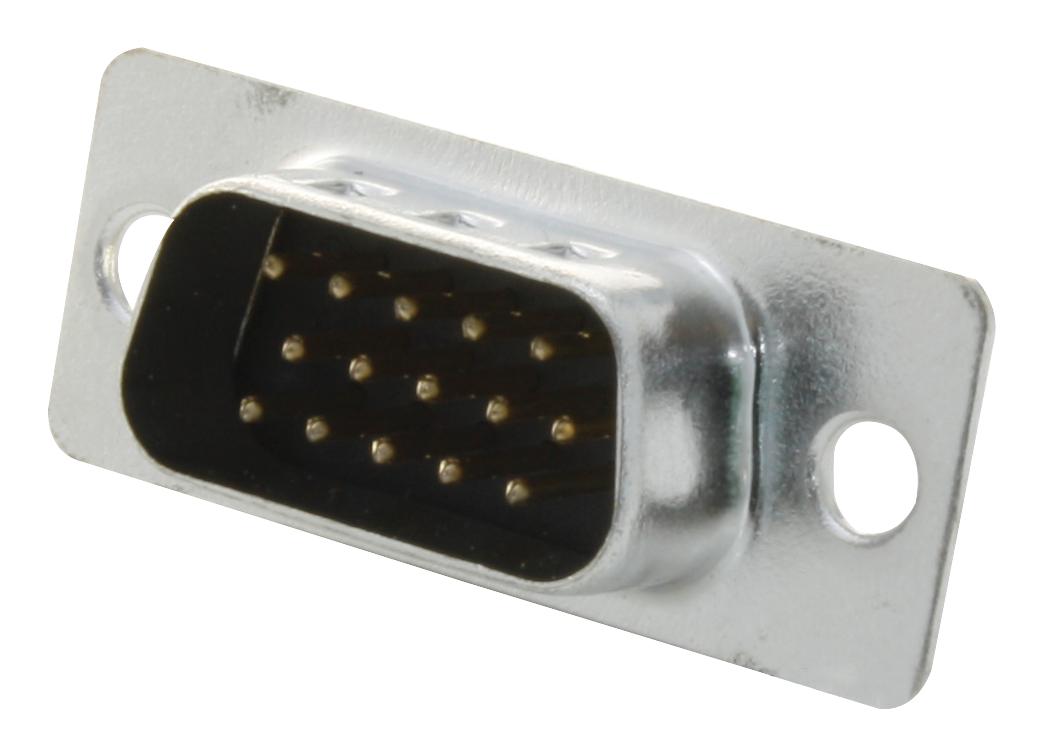

ITT CANNON ZDEA15P D Sub Connector
The ZDEA15P is an affordable D Sub connector featuring 15 pin contacts with a solder pot termination. Made from steel with a tin finish, it is designed for reliable electrical connections in electronic and industrial equipment. The device supports a current rating of 5 A and has a dielectric withstand voltage of 1000 VAC at sea level, suitable for low voltage applications. It withstands operating temperatures from -55°C to +105°C, ensuring durability in harsh environments. Its compact, through-hole mounting design suits various electronic assembly needs, offering up to 50 mating cycles and gold flash contact finish for improved performance. The insulator is constructed from black glass-filled thermoplastic, UL 94V-0 rated, ensuring flame retardancy and safety compliance.
ITT CANNON ZDEA15P D Sub Connector Specifications:
- Number of Contacts: 15 pins
- Contact Size: 20
- Contact Material: Copper alloy
- Contact Finish: Gold flash (Performance Class 3)
- Contact Termination: Solder pot
- Shell Material: Steel
- Shell Finish: Tin
- Insulator Material: Glass filled thermoplastic, UL 94V-0
- Insulator Color: Black
- Mounting Method: Through Hole, .120" (3.05mm)
- Wire Gauge Range: AWG 20-28
- Mating Cycles: 50
- Dielectric Withstanding Voltage: 1000 VAC at sea level
- Current Rating: 5 A max
- Operating Temperature: -55°C to +105°C
- Salt Spray Test: 12 hours
Buy the Buy Cannon D Sub Part Number ZDEA15P Online
Enhance your electronic and industrial setups with the reliable D Sub connector. Featuring 15 gold flash contacts, a robust steel shell, and solder pot termination, it offers durability and excellent performance in harsh environments. With a current capacity of 5 A, dielectric withstand voltage of 1000 VAC, and operating temperature range from -55°C to +105°C, this connector ensures dependable connections for a wide range of applications. Purchase online today for fast delivery and competitive pricing.
Buy Cannon ZDEA15P now and experience reliable connectivity for industrial and electronic projects with durable design and high performance.
Frequently Asked Questions
Where can I buy ITT CANNON ZDEA15P?
You can click on the BUY or RFQ button to purchase ZDEA15P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part ZDEA15P?
You can download the ZDEA15P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of ZDEA15P?
ITT CANNON
