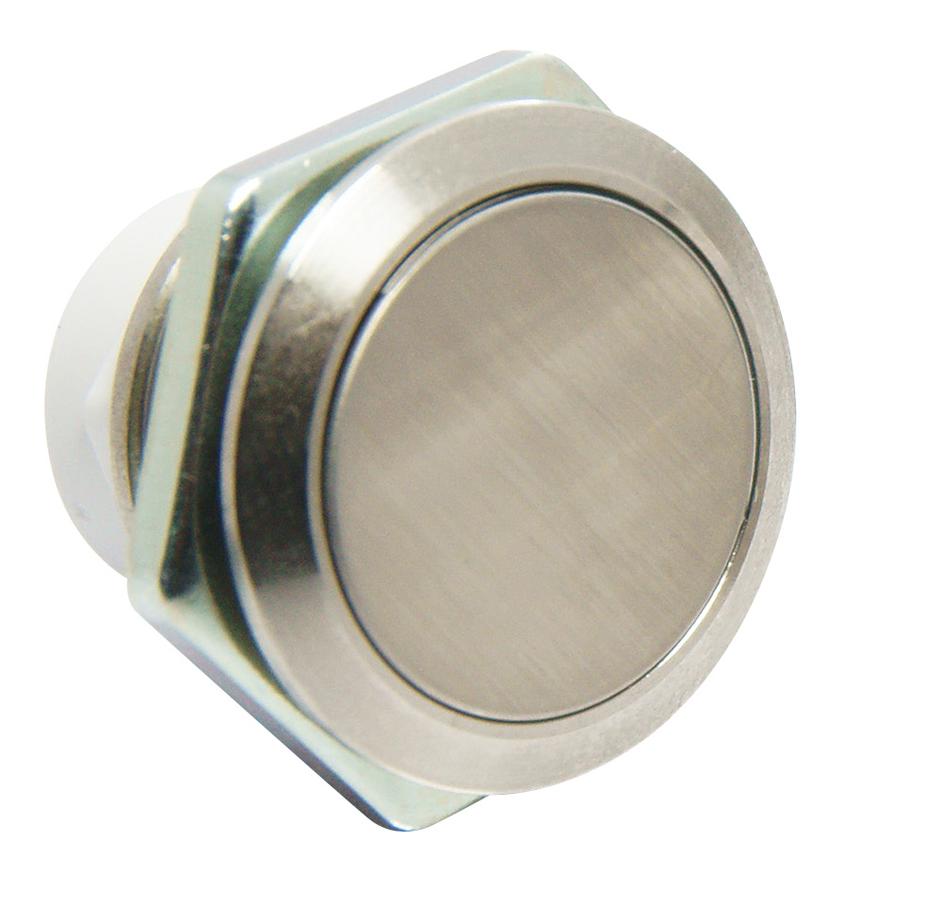

ITW Switches 48M110N Pushbutton Switches
The Series 48M pushbutton switches are rugged, compact electrical components suitable for outdoor controls, security, medical equipment, and industrial machinery. Built with stainless steel or chrome-plated housings, the switches offer momentary or maintained action with optional illumination in various LED colors. Panel sealed to IP67, RoHS compliant, with gold plated contacts and terminals, these switches are designed for reliable performance in demanding environments. They feature M19x1 British isometric thread, low operating force, quick response, and high durability, making them ideal for diverse industrial applications.
ITW Switches 48M110N Pushbutton Switches Specifications:
- Housing Material: Stainless Steel or Zinc Alloy with Velour Chrome plating
- Illumination: Center Spot or Ring with LED Colors (Green, Red, Amber, Yellow, Blue, White)
- Contact Rating: 5A/28VDC, 2A/24VDC or 250VAC depending on model
- Electrical Life: Up to 125K Cycles (depending on model)
- Ingress Protection: Panel sealed to IP67 with sealing Washer
- Panel Thickness: 0.20 to 0.177 inches (5 to 4.5 mm)
- Button Travel: 0.09 inches / 2.3 mm
- Operating Force: 3N / 306g
- Ambient Temperature Range: -40°C to +85°C
- Electrical Characteristics: Dielectric Strength 1,000 VAC, Insulation Resistance 1GΩ, Contact Resistance Max 50mΩ
- Mounting: M19x1 British isometric thread, sealed with hex nut
- Button Type: Metal Button with optional illumination and sealing for harsh environments
Buy the Industrial Switch Co. 48M110N – Reliable Pushbutton Switches for Industrial Applications
Purchase the Series 48M pushbutton switches online today for your industrial, outdoor, medical, or security projects. These rugged, panel-sealed switches feature durable stainless steel or chrome-plated housings, multiple illumination options, and high electrical ratings. Designed for easy installation in panels of 0.20 to 0.177 inches thick, they provide reliable operation, with a button travel of 0.09 inches and an operating force of 3N. Ideal for harsh environments, these switches meet IP67 standards and are RoHS compliant, ensuring long-lasting performance and safety.
Order your Industrial Switch Co. Series 48M110N today and give your projects the dependable quality they deserve, suitable for demanding industrial environments and outdoor controls.
Frequently Asked Questions
Where can I buy ITW Switches 48M110N?
You can click on the BUY or RFQ button to purchase 48M110N from an authorized ITW Switches distributor.
How do I troubleshoot issues or seek technical support for part 48M110N?
You can download the 48M110N datasheet or visit the ITW Switches website for support.
Who is the manufacturer of 48M110N?
ITW Switches
