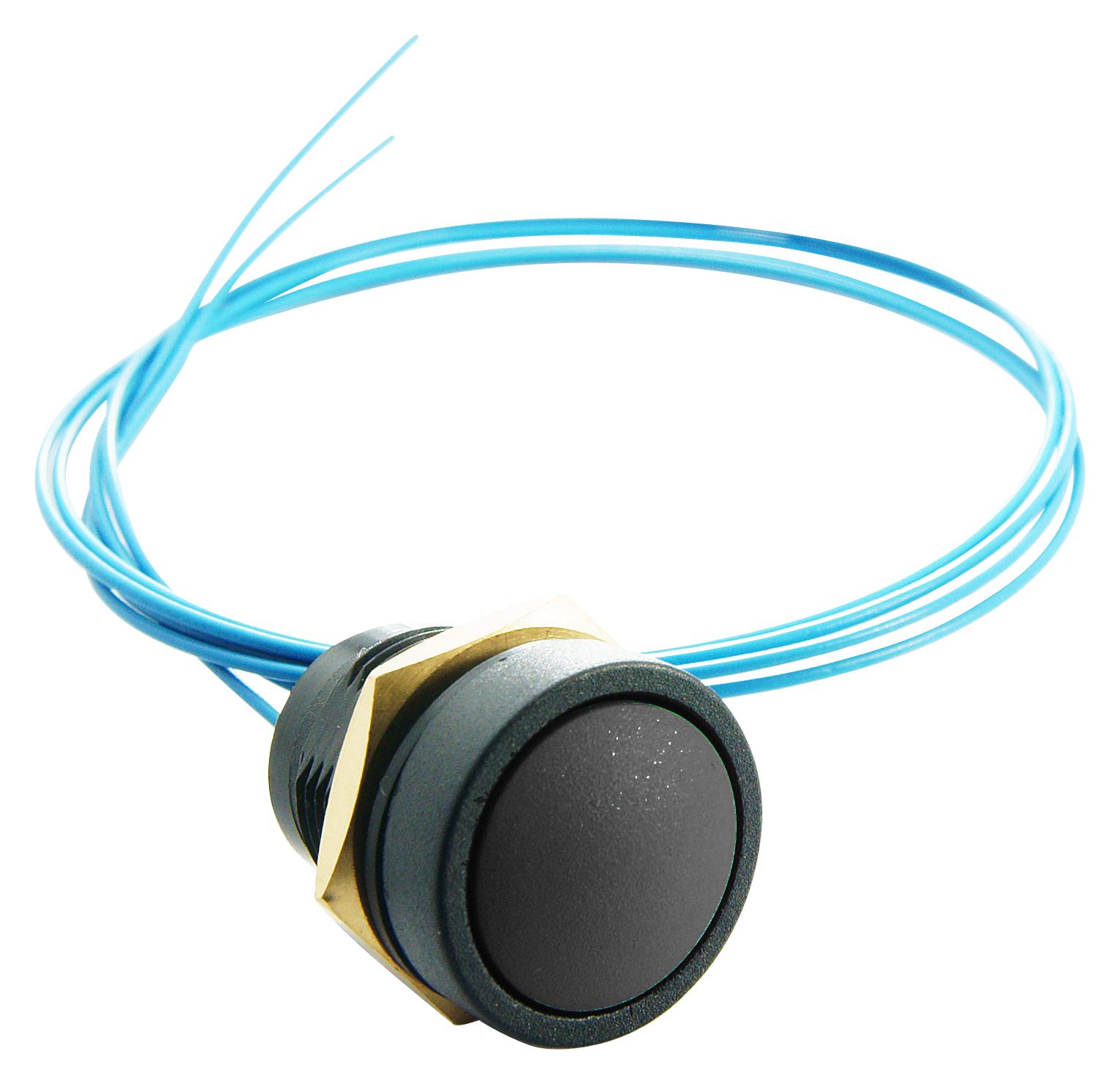

ITW Switches 4959111 Sealed Pushbutton Switch
The Series 49-59 sealed pushbutton switches are designed for industrial and demanding environments. They feature IP67 ingress protection with options for round, square, illuminated, and non-illuminated styles. Equipped with a durable PBT body and button, these switches support high current ratings up to 10A and are suitable for panel cutouts up to 16mm. They include models with flying leads or microswitch termination, making them ideal for applications in communications, instrumentation, data processing, military, and transportation controls. Reliable and versatile, the Series 49-59 ensures safety and performance in harsh conditions.
ITW Switches 4959111 Sealed Pushbutton Switch Specifications:
- Ingress Protection: IP67
- Body Material: PBT
- Button Material: PBT
- Panel Cutout: 16mm
- Max Panel Thickness: 8mm (flying lead), 1.5mm (microswitch)
- Travel: 2.3mm
- Life Cycle: Up to 1,000,000 cycles (pushbutton), 50,000 cycles at 70°C (microswitch)
- Operating Force: 3N (flying lead), 3.8-5.5N (microswitch)
- Voltage Ratings: 400mA @ 32V a.c., 100mA @ 50V d.c., 125mA @ 125V a.c., 10A @ 250V a.c. (microswitch)
- Contacts: Gold plated (flying lead), Silver (microswitch)
- Temperature Range: -55°C to +105°C (non-illuminated), -35°C to +85°C (illuminated)
- Soldering Temperature: Max 320°C for 3 seconds
- Vibration: Complies with DEF STD 07-55
Buy the Buy UST USS Series 49-59 Sealed Pushbutton Part Number 4959111 Online
Order the UST USS Series 49-59 sealed pushbutton switch online today and enjoy fast delivery. Engineered for demanding applications, these switches feature IP67 sealing, tough PBT construction, and multiple configurations. Available with flying leads or microswitch termination, they support high current ratings up to 10A, making them suitable for critical environments like military, instrumentation, and transport controls. Durable, reliable, and easy to install, our sealed pushbutton switches ensure safe operation even under extreme conditions. Shop now for exceptional quality and performance!
Buy UST USS Series 49-59 sealed pushbutton switch now and ensure reliable operation in harsh environments with IP67 protection and high current capacity.
