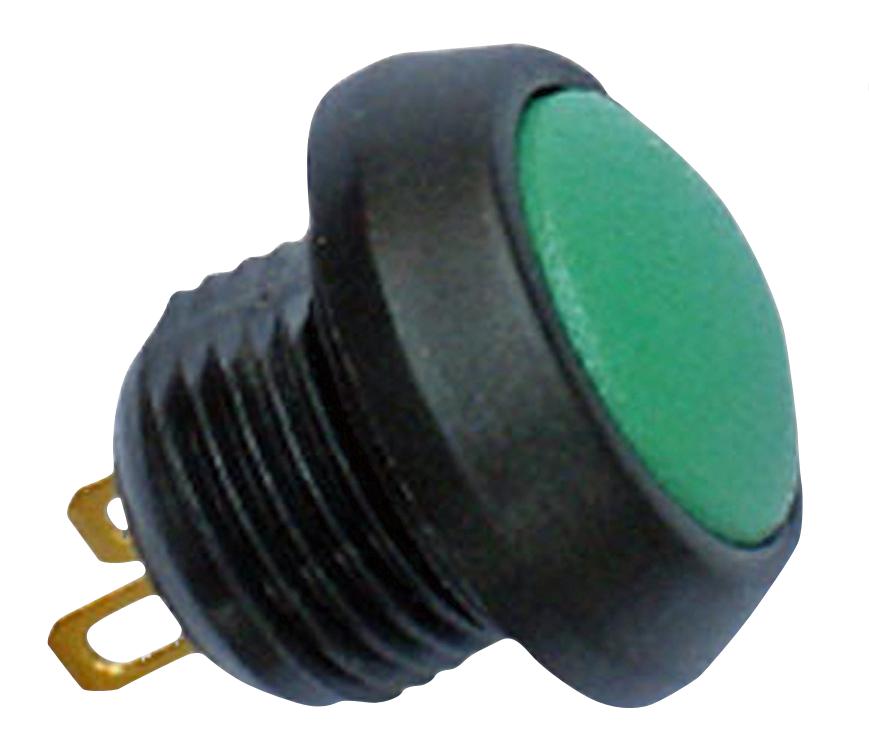

ITW Switches 59513 Pushbutton Switch
The Series 59 pushbutton switches are rugged, sealed, and designed for harsh environments, offering both illuminated and non-illuminated versions. These miniature, momentary action switches feature high impact resistance, IP67 sealing, and choice of bezel styles—round, square, or high round. With body options in zinc alloy or PBT, they are suitable for applications in communications, instrumentation, military, and transportation sectors. They incorporate gold-plated contacts, diverse color options, and optional LED illumination, providing reliable performance under demanding conditions and easy panel mounting with locknuts.
ITW Switches 59513 Pushbutton Switch Specifications:
- Travel: 2.3mm
- Life: 1,000,000 cycles (max)
- Operating Force: 3N
- Contact Bounce: 1ms
- Panel Thickness: 1.5-3mm
- Panel Cut Out: 13.6mm with D flat
- Dielectric Strength: 1000V AC
- Insulation Resistance: 1GΩ
- Contact Resistance: 50mΩ
- Current Rating: 400mA at 32V AC, 100mA at 50V DC, 125V AC resistive
- Switching Power: 16VA AC (max)
- Ingress Protection: IP67 (panel sealed)
- Operating Temperature: -55°C to +125°C (zinc alloy), -40°C to +105°C (PBT), -35°C to +85°C (illuminated)
- Body Material: Zinc alloy or PBT
- Button Material: PBT
- Contacts: Gold-plated nickel
- Soldering Temp: Max 320°C for 3 seconds
Buy the ITW-SWITCHES Series 59 Pushbutton Switch Part Number 59513
Enhance your control systems with the UST Series 59 pushbutton switch, featuring sealed IP67 protection, rugged zinc alloy or PBT body, and options for LED illumination. Suitable for industrial, military, and transportation applications, these compact switches provide reliable, long-lasting operation with a maximum cycle life of 1,000,000. Easy to install, with panel sealing and various bezel styles, they are ideal for environments requiring durable, high-performance momentary switches. Buy online now for fast delivery and dependable quality.
Order your UST Series 59 sealed pushbutton switch today and equip your control panels with a rugged, IP67-rated, impact-resistant component designed for demanding environments.
Frequently Asked Questions
Where can I buy ITW Switches 59513?
You can click on the BUY or RFQ button to purchase 59513 from an authorized ITW Switches distributor.
How do I troubleshoot issues or seek technical support for part 59513?
You can download the 59513 datasheet or visit the ITW Switches website for support.
Who is the manufacturer of 59513?
ITW Switches
